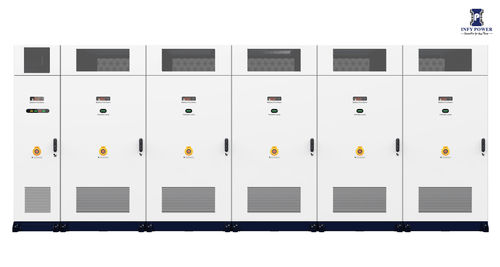

LFP energy storage system ICB241kWh-120kW

outdoorwith inverterliquid-cooled

The ICB series battery energy storage system is specifically designed for commercial and industrial (C&I) energy storage applications, including EV charging infrastructure. It offers two flexible configuration options to meet varying power and capacity needs: Option 1: 218 kW rated power with 218 kWh storage capacity, supporting optional 30 kW solar input Option 2: 120 kW rated power with 241 kWh storage capacity, supporting optional 30 kW or 60 kW solar input With integrated support for renewable energy access and scalable design, the ICB series enables businesses to improve energy efficiency, reduce electricity costs, and enhance energy resilience in high-demand environments. For flexible power expansion, it enables maximum 5 sets paralleled on grid and 4 sets paralleled off grid for the 241kWh version. Main Features: 1. PCS maximum efficiency ≥ 98.7% 2. Multi-dimensional large-surface liquid cooling, ≤ 3°C battery cell temperature difference 3. Optional STS cabinet to realize backup load instant power support in 20ms when off grid 4. Robust 5-level comprehensive fire protection 5. Building block design for hassle-free future installtion 6. Flexible expansion capability to meet CPO phased operational requirements 7. Anti-reverse protection with gateway AC meter and EMS to meet operation demands
