Electric vehicle charging station EXP800K6-FWR6

DCfloor-mountedcabinet

Product Introduction

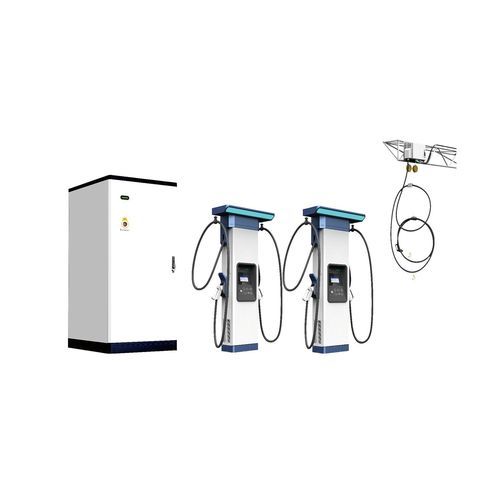

EXP800K6-FWR6 is an air-cooled split type DC fast charger engineered for operators of EV charging sites with split and multi-point charging deployments. It supports CCS/NACS/CHAdeMO/GBT connectors, delivers up to 800 kW total output, and can feed up to 12 charging connectors via 6 dual-connector or 12 single-connector dispensers. The system supports 500 A liquid-cooled connector options and uses an intelligent power switching matrix to allocate power modules dynamically for optimal utilization. An overhead dispenser configuration for bus depots is available using the same power cube.

Key Features

• Building-block modular architecture with standardized interfaces
• Configurable up to 12 charging channels; 300 A or 500 A options
• Certifications: TUV CE, cTUVus, RED, CB, OCA, FCC, CTEP, Energy Star
• Protection ratings: power cube IP55, stand floor dispenser IP55, overhead dispenser IP65
• Patented U-type air duct for efficient air cooling
• Customizable dispensers and overhead dispenser solution for bus depots
• WEB/APP maintenance backend to enhance O&M efficiency
• High power density for best space efficiency
• Acoustic levels: power cube 65 dB, stand floor dispenser 55 dB, overhead dispenser 0 dB
• BABA support

Technical Specifications (selected tables)
AC input
Frequency: 45 Hz–65 Hz
Voltage: CE: 3-phase+(N)+PE, 380/400 Vac ±10%; UL: 3-phase+(N)+PE, 480 Vac ±10%
Max input current: CE: 2×640 A @ 380 Vac; UL: 2×506 A @ 480 Vac
Power factor: >0.99
Standby power: THDi:
DC output
Voltage: 50 Vdc–1000 Vdc
Max output current: 600 A per output charging channel
Max output power: 800 kW
Constant power voltage: 300 Vdc–1000 Vdc
System efficiency: 97% (peak efficiency)
Output channel: up to 12 output charging channels for dispensers
Dispenser support: up to 6 dual-connector or 12 single-connector dispensers

Mechanical Parameters (power cube)
Dimensions (W×D×H): 1050 mm × 1100 mm × 2200 mm
Weight (cabinet + modules): 800 kg + 20 × 17 kg = 1140 kg

Power module
20 × REG1K0135G2 40 kW 1000 V power modules

Power switching mode
Intelligent power switching matrix dynamically allocates power modules among charging connectors

HMI
RGB LED, E-STOP

HMI kiosk (optional)
Tempered glass protected 10" capacitive touch LCD, RFID, POS (optional)

Protection rating
IP55 (power cube)

Certification
TUV CE, cTUVus, RED, CB, OCA, FCC, CTEP, Energy Star

Noise

Operating environment
Operating temperature: -30 °C to +70 °C, full power to 50 °C, power derating 5%/°C above 50 °C
Transportation/Storage: -40 °C to +75 °C
Relative humidity: ≤95% RH, non-condensing
Altitude: 2000 m
Atmospheric pressure: 80 kPa–110 kPa
Cooling method: Air cooling
