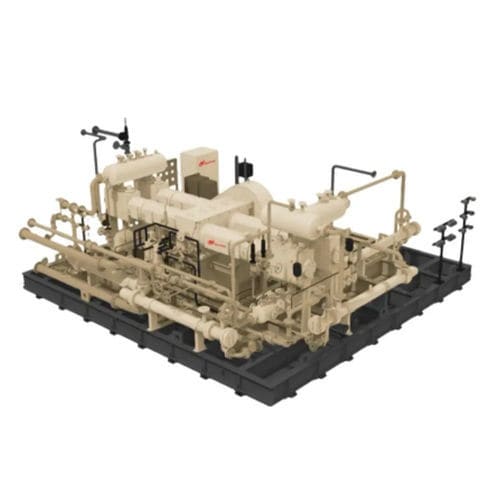

Reciprocating piston compressor HSE4

hydrogenelectricstationary

The HSE4 series is a powerhouse in Ingersoll Rand’s hydrogen compressor range, boasting a 620 kW rating for high-volume hydrogen compression. It effectively processes up to 3,500 m³/hr at atmospheric inlet pressure and can increase to 12,000 Nm³/hr with boosted inlets from various electrolyser types or SMR sources. Suited for large-scale electrolyser installations over 10 MW, the HSE4 is suitable for pipeline, chemical, and industrial uses. Its horizontal, four-cylinder layout ensures steady operation, while double-acting cylinders in each stage maximize flow rate. Features High-Volume Capacity: With a significant flow range, these compressors are designed for the needs of large-scale hydrogen production. Maximum Pressure Delivery: Capable of achieving 200 bar, suitable for a variety of demanding applications. Optimized Design: The horizontal, four-cylinder layout provides stable and balanced performance. Flexible Operation: Double-acting cylinders maximize flow rates and adaptability to different operational modes. Standards Compliance: Meet API and ATEX standards, with CE marking available, ensuring adherence to stringent industry regulations. Power and Efficiency: A 620 kW rating highlights the compressors’ ability to operate at high capacities while maintaining efficiency.
