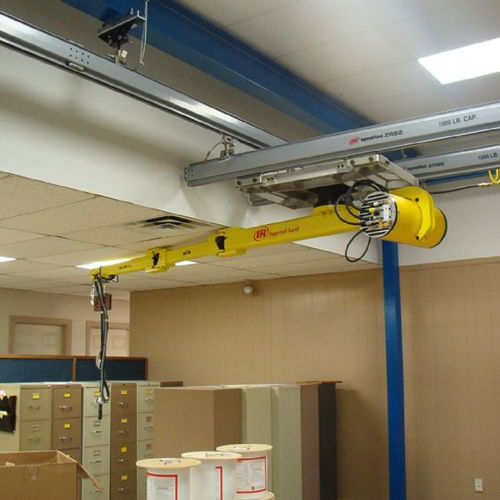

Pneumatic manipulator arm 700C

with integrated hookfor liftingoverhead rail-mounted

The 700C Arm is a “banjo" arm consisting of three connecting linkages which allows the boom/balancer combination to cover a large area. The arm can fold into itself and articulate 270 degrees to reach around columns, posts or other interference points. The 700C has a short stack-up, which is useful for low headroom applications because it minimizes interference with the operator. The balancer is mounted at the rear of the arm and pulleys in the center section route the wire rope to the front of the arm. Customer will need to specify balancer type, mounting option, carriage type, arm length and balancer controls when ordering. • Articulating boom • Two-point pivotproviding 270º articulation • Integral Balancer • Integrated 150,200, 350, or 500lb balancer • Low inertia • Rear-mount balancer offers lowest rotational intertia of all models, reducing operator fatigue • Low profile • Short stack-up for low headroomapplications • Flexible mounting • Carriage mounted for overhead rail transfer applications or column mounted for stationary applications • Flexible reach • Arm lengths of 6 ft (1.83 m), 7 ft (2.13 m), 8 ft (2.44 m), 9 ft (2.74 m), and 10 ft (3.05 m) available
