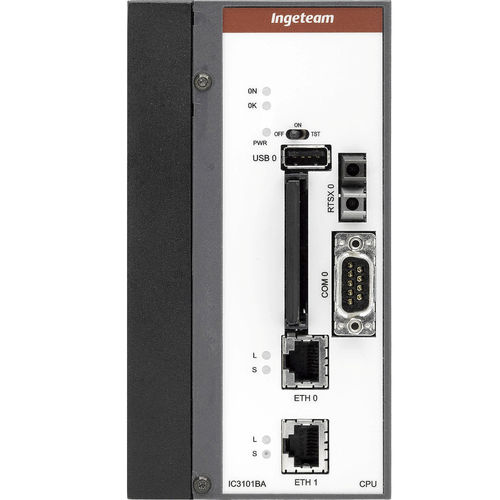

X86 computer-on-module IC3101 series

EthernetUSBRS-232

The IC3101 processor modules enable maximum INGESYS™ CMS functionality and performance, offering a state-of-the-art solution for CMS applications. These processor modules optimally integrate the real-time control characteristics and robustness of industrial PLCs, with advanced control functional features based on PC technology standards (data management, embedded web servers, communications protocols, etc). Their compact, robust design makes is possible to work in an extensive temperature range thanks the passive cooling elements. Different communication interfaces allow INGESYS™ CMS to be integrated with redundant Ethernet networks, remote I/O extensions and RS232/RS485 communication links. • x86 500Mhz processor • 2/4 Ethernet interfaces (10/100) • 1 USB host interface • 1 RS232C serial interface • 4MB RAM for user application • 10MB internal Flash for user application • 62KB NVRAM • CF slot for user data • TEST/ON/OFF switch and status LEDs Optional o RTSX interface o CAN port o 2/ 4/ 8 TSX channels (local IO)
