Continuous wave laser diode LD-10XX-FBG-400
fiberinfraredsingle-mode

continuous wave laser diode
continuous wave laser diode
Add to favorites
Compare this product


Characteristics

Operational mode
continuous wave
Technology
fiber
Spectrum
infrared
Other characteristics
single-mode, high-power
Power

0.4 W

Wavelength

Min.: 1,000 nm

Max.: 1,130 nm

Description

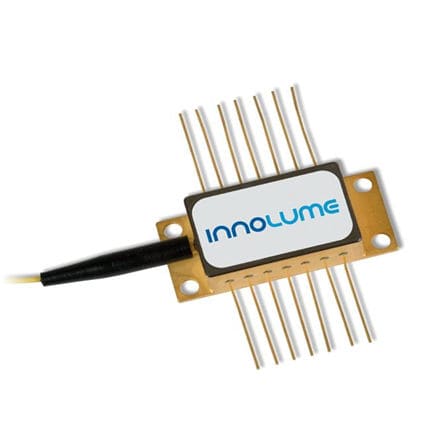

Innolume offers a broad portfolio of high power, spatial single-mode laser diodes of any wavelength in the 780nm to 1340nm range. Devices are available either packaged in a 9-mm TO-can with a free-space beam or as a single-mode or polarization maintaining (PM) fiber coupled standard 14-pin butterfly package. Laser modules with PM fiber provide Polarization Extinction Ratio (PER) of typically >18dB. The fiber coupled laser diodes may be configured to operate in CW (up to 600mW) or in pulsed mode and may optionally be equipped with a Fiber Bragg Grating (FBG) for spectrum stabilization. Especially designed for seeding application, Innolume pulse laser diode features up to 1.2W of low noise peak optical power, broadened spectrum allows to suppress Stimulated Brillouin Scattering (SBS) in high power fiber lasers. Each laser diode product line has passed a qualification procedure to prove high reliability. All supplied lasers pass an individual screening procedure and are accompanied by a detailed outgoing inspection report. Features: • FBG wavelength stabilized • 400mW output power ex-single mode fiber • Available wavelength range 1000-1130nm • Proprietary mirror coating technology enabling high reliability • Polarization maitaining PM980 fiber • Individual burn-in and thermal cycling screening • RoHS compliance

Catalogs

No catalogs are available for this product.
