Asynchronous motor MV
ACthree-phaseinduction

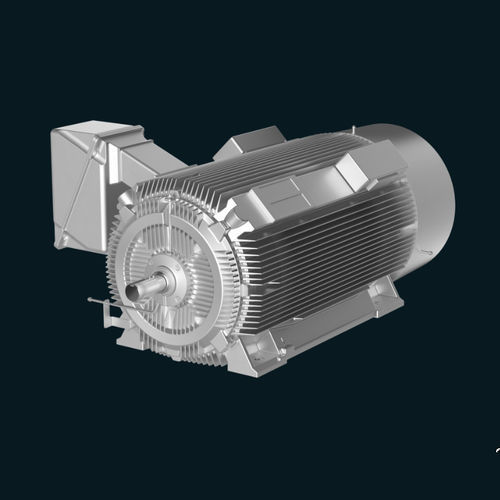

Asynchronous motor - MV - INNOMOTICS - AC / three-phase / induction
Asynchronous motor - MV - INNOMOTICS - AC / three-phase / induction
Add to favorites
Compare this product

Characteristics

Type
asynchronous, AC, three-phase, induction
Voltage
2300 V, 4000
Configuration
cast iron, cast iron frame, TEFC
Protection class
IP55
Number of poles
4-pole, 2-pole, 6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
high-power, variable-frequency, inverter duty, medium-voltage, variable-torque, TEFC
Power

Max.: 820.3 kW
(1,115.3 hp)

Min.: 223.7 kW
(304.15 hp)

Description

Overview
  • The MV Advantage is a series of AboveNEMA medium-voltage, general-purpose industrial motors offering standard configuration options and power ratings up to 1,100 HP. Assembly and stock availability in Ohio enable short lead times.


Construction features
  • Enclosure: TEFC (IC411)
  • Ingress protection: IP55
  • Power range: 400–1,100 HP (2 & 4 poles); 300–900 HP (6 poles)
  • Frame sizes / shaft heights: 5011, 5810, SH400
  • Rated voltages: 2300 V / 4000 V
  • Service factor: 1.15 @ 40 °C
  • Warranty: 36 months from manufacture date


Materials and components
  • Frame: cast iron
  • Bearing housings: cast iron
  • Main terminal box: cast iron
  • Auxiliary boxes: cast iron, NEMA 4X
  • Shaft: 1045 equivalent (2 poles); 4140 equivalent (4, 6 poles)
  • Rotor: die-cast aluminum
  • Lamination material: C5 core plate
  • External cooling fan: antistatic reinforced polyamide
  • Fan cover: cast iron
  • Insulation system: MICLASTIC™ VPI
  • Hardware: galvanized carbon steel


General information
  • Sound level: 85 dB(A)
  • Vertical mounting: not applicable
  • Variable-frequency drive (VFD) operation: compliant with NEMA MG1-31 at 6 kV (variable torque 10:1; constant torque 2:1)
  • Paint: two-component epoxy
  • Paint color: RAL 7030 gray
  • Bearing type: anti-friction ball bearings
  • Vibration: 0.12 IPS
  • Hazardous area rating: CSA Class 1, Division 2, Groups B, C, D; Temperature class T3 (frame 5011 on VFD Temp Class T2D)
  • Protection and sensors: space heater 120/240 V; stator RTDs 2/phase (2-wire); bearing RTDs 1/bearing (2-wire)


Technical specifications
  • Product family: Advantage Series (AboveNEMA medium-voltage motors)
  • Model: MV Advantage
  • Maximum power: up to 1,100 HP
  • Voltages: 2300 V / 4000 V
  • Frame sizes: 5011, 5810, SH400
  • Enclosure: TEFC (IC411) — IP55
  • Insulation: MICLASTIC™ VPI
  • Typical applications: general-purpose industrial medium-voltage motor needs
  • Warranty: 36 months from manufacture date
