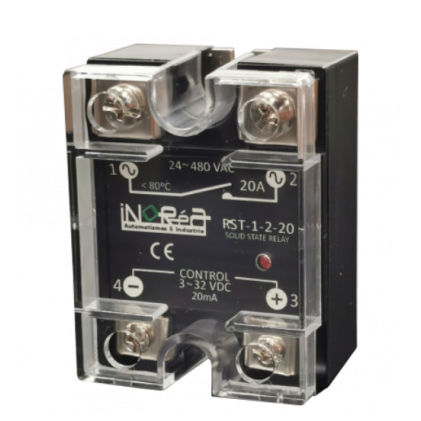

32VDC solid state relay RST_1_2 series
powerAC output

32VDC solid state relay
32VDC solid state relay
Add to favorites
Compare this product


Characteristics

Control voltage
32VDC
Function
power
Other characteristics
AC output
Output voltage

230 V

Output current

20 A, 40 A

Description

The solid state relay performs as a contactor: a voltage application (between 2 and 32 VDC) on the control drives the transistor functional and powers the electrical charge. Technical features CMOS technology Top protection in plastic Isolation voltage: 1000 MΩ / min (500V) Dielectric rigidity 2500VAC / 1 min Switching time <10ms Operating temperature: -5°С to + 65°С, relative humidity: 35 - 85% RH Radiator sizing is critical for the lifespan of the component. The power dissipation can be calculated from the following formula:
