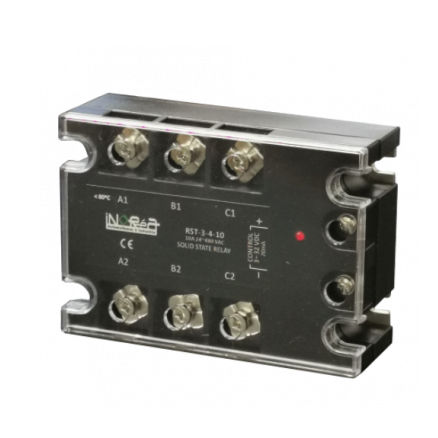

32VDC solid state relay RST_3_4 series
three-phasepower

32VDC solid state relay
32VDC solid state relay
Add to favorites
Compare this product


Characteristics

Control voltage
32VDC
Network
three-phase
Function
power
Output voltage

480 V

Output current

10 A, 20 A, 40 A, 60 A

Description

The solid state relay performs as a contactor : a voltage application (between 2 ) on the control drives the transistor functional and powers the electrical charge. Technical features CMOS technology Top protection in plastic Isolation voltage: 1000 MΩ /min (500V) Stability of pulse voltage: 2000V, 50Hz Diélectric rigidity 2500VAC /1 min Leakage current <2mA Switching time <10ms Operating temperature: -5°С to + 65°С, relative humidty: 35 - 85% RH Radiator sizing is critical for the lifespan of the component. The power to be dispersed is given by the following formula: Effective current of the electrical charge(A) x 3.0 W/A. Warning: The solid state relay must be protected against output high voltage by a varistor, especially during the use of an inductive charge.
