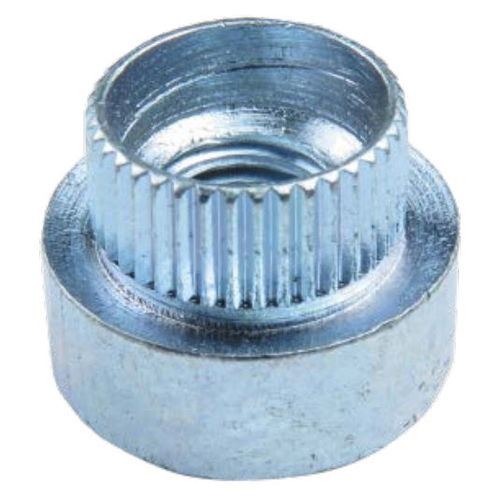

Rivet nut IARB seriessteelbrassstainless steel
Add to favorites
Compare this product
Characteristics
- Types
- rivet
- Material
- steel, brass, stainless steel, aluminum
- Nominal diameter
Min.: 2.5 mm
(0.1 in)Max.: 12 mm
(0.47 in)- Height
Min.: 3.2 mm
(0.126 in)Max.: 10.2 mm
(0.402 in)- Width
Min.: 7.9 mm
(0.31 in)Max.: 24.5 mm
(0.96 in)
Description
NOTES
Round rivet bushes provide strong reusable threads in panels too thin to be conventionally tapped. They can be installed into panels as thin as 0.5mm and do not suffer from the maximum hardness limitations of self-clinching nuts and standoffs so they are suitable for installation into stainless steel panels. The round knurled spigot patterns provides excellent resistance to torque in softer materials and are available in steel and stainless steel as standard with aluminum and brass available to order.
MATERIALS AND OTHER TYPES
– Mild Steel
– 300 series Stainless Steel
– Aluminum and Brass to special order
– Plain
