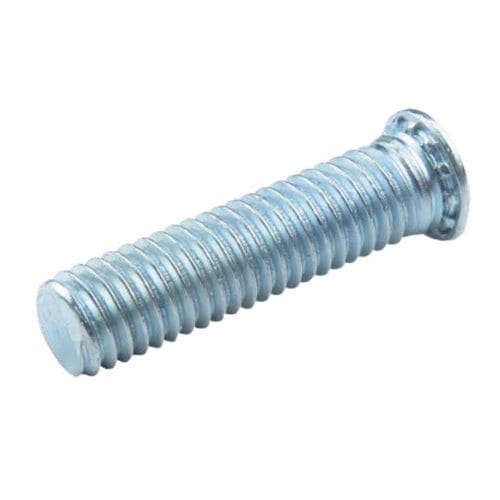

Threaded stud IPFH series
steelaluminumcrimp-on

threaded stud
threaded stud
threaded stud
Add to favorites
Compare this product


Characteristics

Type
threaded
Material
steel, aluminum
Fixation
crimp-on
Diameter

Min.: 4.6 mm
(0.18 in)

Max.: 9.6 mm
(0.38 in)

Length

Min.: 6 mm
(0.24 in)

Max.: 40 mm
(1.57 in)

Description

NOTES The following installation panel material hardness limitations apply when installing Self Clinching Studs. Steel Clinch Studs: 80 HRB Max, 300 Series Stainless Steel Clinch Studs: 70 HRB Max, 400 Series Stainless Steel Clinch Studs: 92 HRB Max (A special anvil is recommended for a proper installation), Aluminum Clinch Studs: 50 HRB Max. MATERIALS AND PLATING – Carbon Steel – 300 series Stainless Steel – Zinc – Plain
