Pt100 temperature probe
RTDPt10004-wire

Pt100 temperature probe
Pt100 temperature probe
Add to favorites
Compare this product


Characteristics

Technology
Pt100, RTD, Pt1000
Other characteristics
4-wire, 3-wire, insulated, flexible, custom
Temperature

Min.: -50 °C
(-58 °F)

Max.: 250 °C
(482 °F)

Description

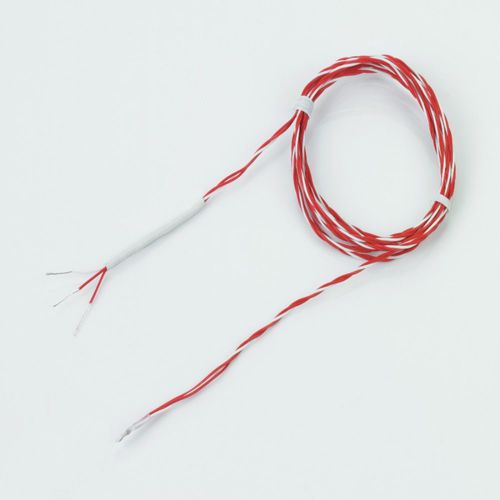

Pt100 Class A Wire Probe £9.00 – £40.00 Class A element Pt1000 versions available 3 & 4 Wire configurations PFA material -50 to +250C range Custom versions available Pt100 Class A Wire Probe. 3 or 4 wire resistance thermometer with PFA insulated lead wire. A Pt100 class A RTD exposed 2 x 2mm flat film detector with flexible twisted silver plated copper 7/0.2 PFA insulated lead wire for use up to 250 °C. Colour coded with red and white legd and available in standard lengths up to 3 metres, this range is also available to order in custom lengths to suit your application. The RTD’s are supplied with stripped leads. Temperature Range: -50/250C Accuracy: Class A Material: PFA 7/0.2mm Overall Size: 2mm nominal Element: Exposed thin film 2mm x 2mm Volume and OEM prices are also available by request.
