Bimetallic thermometer
dialinsertionstainless steel

bimetallic thermometer
bimetallic thermometer
Add to favorites
Compare this product


Characteristics

Technology
bimetallic
Display
dial
Configuration
insertion
Other characteristics
stainless steel, rugged
Temperature

Min.: -30 °C (-22 °F)

Max.: 120 °C (248 °F)

Description

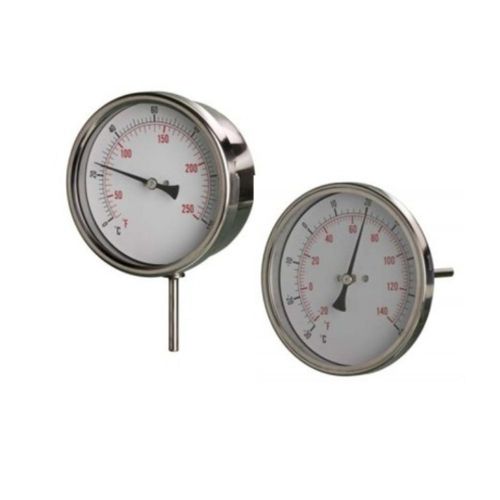

100mm (4″) diameter dial IP52 rated case 316SS stem Class 2 Accuracy 6mm diameter stem Glass window 50mm or 100mm stem length Robust design Bi-metal thermometers use a long stem to transfer the heat to a coil just behind the dial. This expands or contracts according to the temperature the devices are exposed to. The dial of the bi-metal thermometer then displays the temperature. This range of Bi-metal thermometers can be used in a wide range of industries and applications. They are designed for use according to BS EN13190. The 6mm diameter stem is manufactured from 316 stainless steel. It is available in either 50mm or 100mm lengths. Other scales and versions are available by request, pockets are available in BSPP, BSPT and NPT. The 100mm version can be used with a compression fitting if required – Compression fittings available
