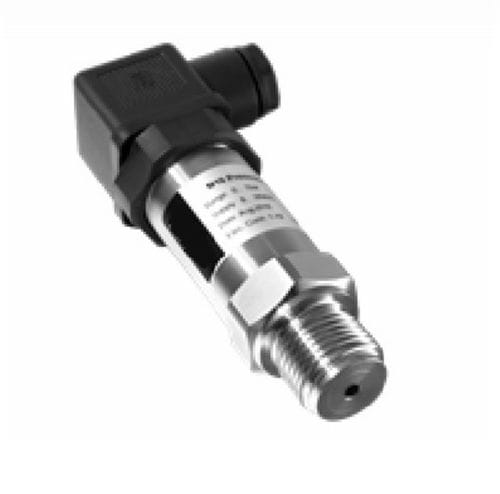

Relative pressure transmitter CP01

absolutedigital4-20 mA

Overview
Ranges: -1 to 0 bar, -1 to 9 bar, 0 to 100 mbar … 0 to 600 bar
Pressure type: Gauge, Sealed gauge, Absolute
Process connection: 1/2 Gas male, 1/4 Gas male, M20x1.5 male
Non-linearity: 0.25% of FS
Enclosure protection: IP65

Detailed description
Gauge pressure transmitter designed for industrial measurements up to 600 bar. This sensor provides an analog signal requiring conditioning/reading by suitable electronics. Version available with calibration certificate (optional, COFRAC certificate).

Technical characteristics / specifications

• Measurement ranges: -1 to 0 bar, -1 to 9 bar, 0 to 100 mbar, …, 0 to 600 bar
• Pressure type: Gauge, Sealed gauge, Absolute
• Process connection: 1/2 Gas male, 1/4 Gas male, M20x1.5 male
• Non-linearity: 0.25% of FS
• Temperature-related error: Typical ≤ ±0.5% of FS (0 to 70 °C); Maximum ≤ ±1% of FS (0 to 70 °C); Maximum ≤ ±2% of FS (-20 to 85 °C)
• Long-term stability: Max ±0.3% of FS per year
• Operating temperature: -20 to 85 °C
• Storage temperature: -40 to 100 °C
• Supply: 8–28 VDC
• Output signal: 4–20 mA; 0.5 to 4.5 VDC
• Load: ≤ (U-8)/0.02 Ω (2-wire); ≥ 10 kΩ (3-wire)
• Enclosure protection: IP65
• Option: Delivery possible with COFRAC calibration certificate
