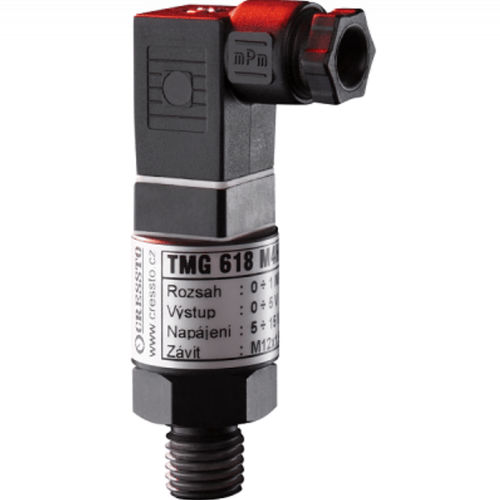

Relative pressure transmitter Série M
piezoresistivesiliconanalog

Relative pressure transmitter - Série M - Instrumentys - piezoresistive / silicon / analog
Relative pressure transmitter - Série M - Instrumentys - piezoresistive / silicon / analog
Add to favorites
Compare this product
Go to the Instrumentys website for more information

Characteristics

Pressure type
relative
Technology
silicon, piezoresistive
Output
analog, ratiometric 0,5-4,5 V
Supply voltage
DC
Fluid
for liquids, for gas
Protection level
IP54
Pressure range

Min.: 0.1 bar
(1.45 psi)

Max.: 10 bar
(145.04 psi)

Precision

1.5 %

Process temperature

Min.: -15 °C
(5 °F)

Max.: 85 °C
(185 °F)

Description

Description
  • Industrial pressure transmitter Series M
  • Nominal pressure range: ±10 kPa to ±1 MPa
  • Overpressure: for ranges up to 40 kPa → 100 kPa; for ranges above 60 kPa → nominal range 200%
  • Error: maximum 1.5% (1% option)
  • Temperature error (zero): typ. 0.2%; max. 0.3% / 10 °C
  • Temperature error (full scale): typ. 0.2%; max. 0.3% / 10 °C
  • Temperature compensation: 0 to +70 °C
  • Operating temperature: -15 to +85 °C (no condensation)
  • Storage temperature: -25 to +100 °C
  • Supply voltage: 5 to 15 V DC
  • Supply current: typ. 0.5 mA
  • Analog output: 0.5–4.5 V
  • Protection rating: minimum IP54
  • Net weight: approx. 35 g
  • Compact dimensions, low power consumption and overpressure endurance
  • Designed to measure relative overpressure and underpressure in non-aggressive liquid and gaseous media
  • The sensor provides an analog signal requiring conditioning/electronics for display and processing
  • Option: available with COFRAC calibration certificate


Technical characteristics / specifications
  • Model: Series M
  • Available measurement ranges: ±10 kPa to ±1 MPa
  • Permitted overpressure: 100 kPa for ranges ≤ 40 kPa; 200% for ranges > 60 kPa
  • Accuracy: ≤ 1.5% typical (1% option)
  • Thermal drift (zero): typ. 0.2% / 10 °C, max. 0.3% / 10 °C
  • Thermal drift (full scale): typ. 0.2% / 10 °C, max. 0.3% / 10 °C
  • Temperature compensation: 0 to +70 °C
  • Operating temperature: -15 to +85 °C (no condensation)
  • Storage temperature: -25 to +100 °C
  • Supply: 5 to 15 V DC
  • Consumption: typical current 0.5 mA
  • Output: analog signal 0.5–4.5 V
  • Protection rating: ≥ IP54
  • Weight: ~35 g
  • Applications: relative pressure measurements (overpressure/underpressure) in non-aggressive media
