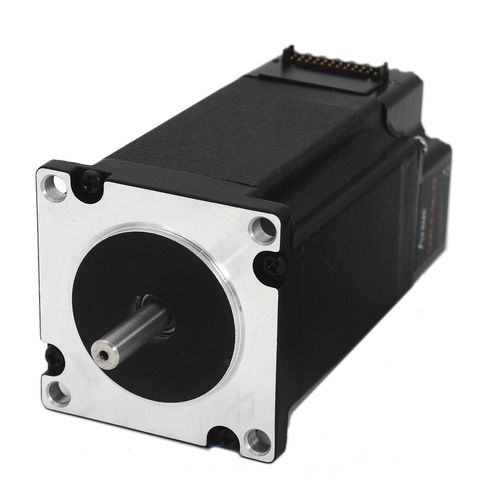

DC motor stepper24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- stepper
- Voltage
- 24 V, 12 V, 48 V, 36 V, 18 V
- Configuration
- NEMA 17, NEMA 23
- Other characteristics
- RS-485, closed-loop, programmable
Description
Integrated Stepper Motors feature USB / RS-485 / Ethernet communication links and provide highly programmable, integrated actuators with a motor, encoder, amplifier, controller in a single package.
Features (model dependent):
-USB2, RS232, 10 Mbps Ethernet Communication
-Stand-alone control via a BASIC-like programming language
-12 to 48 VDC voltage input
-500 microstep
-100mA to 3.0A current setting
-Opto-isolated +Limit, -Limit, and Home inputs
-Opto-isolated Digital inputs
-(2) Opto-isolated Digital outputs
-(2) High speed position capture digital input
-1000 line incremental encoder (4000 counts/rev with 4x quadrature decoding)
-StepNLoop closed loop algorithm
-On-the-fly speed change
-S-curve/Trapezoidal acceleration profile control
-Available in NEMA 17, 23 sizes in double and triple stack lengths
-Multi-task programming support
-LabView VIs available
