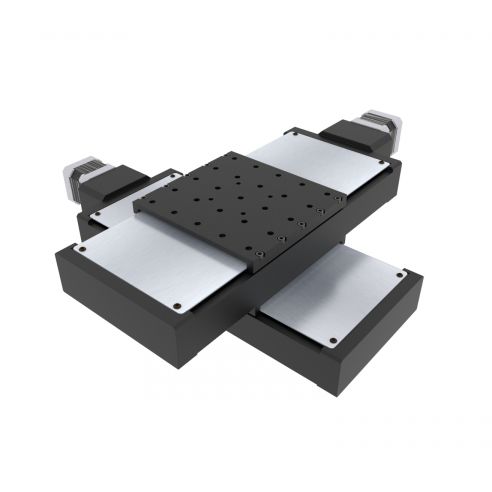

XY stage XY-BSMA-140H-100X100

motorized2-axisprecision

Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation. Stroke X x Y 100x100 mm Ball screw lead 4 mm Motor mounts Nema17 Motor type - stepper servo with encoder (4000cpr) Repeatability ± 10 microns Load capacity 16 kg Max screw speed 10 RPS (stepper) 25 RPS (servo/encoder)
