disc filter / liquid / in-line / micro-flow
TDF series

Add to MyDirectIndustry favorites
Compare this product

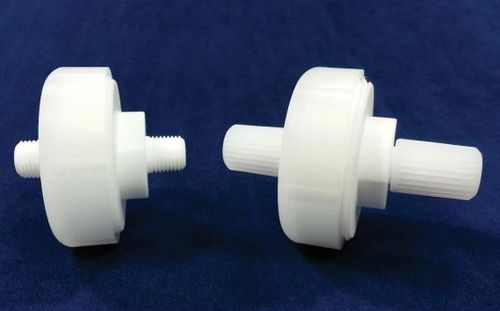

disc filter / liquid / in-line / micro-flow disc filter / liquid / in-line / micro-flow - TDF series
{{requestButtons}}

Characteristics

  • Designed for:

    liquid

  • Filtration element:

    disc

  • Other characteristics:

    in-line, micro-flow, PTFE

  • Filtration size:

    1.5 µm, 4.5 µm, 15 µm, 25 µm

Description

The iPolymer PTFE Disc Filter (TDF) has been designed to fulfill the special requirements of inline microfiltration for sensitive medias. All contact surfaces are constructed so that nothing but PTFE comes into contact with the media being filtered. The Disc Filter utilizes replaceable Zitex™ filter elements which form a continuous mat of PTFE fibers. These fibers are fused together to form a screen-like membrane structure. The resultant membrane is hydrophobic and hence aqueous suspensions must be filtered at high rates to overcome surface tension. Because of the non-stick characteristics of PTFE, the natural lubricity of all wetted surfaces, and the easy replacement of filter elements, entrapped contaminates may be easily removed.
