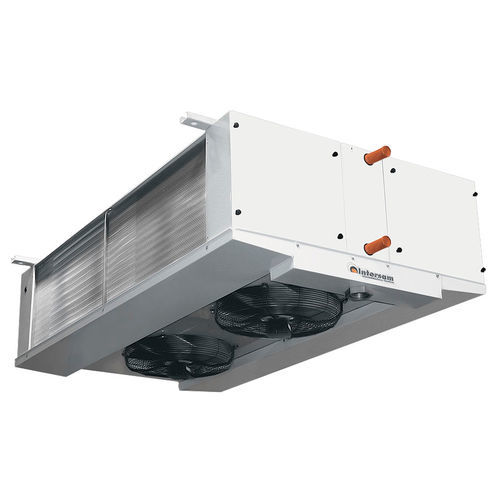

Industrial forced draft evaporator

aircoolingdistribution

These Intersam industrial ceiling coolers use glycol as a coolant. They have double air distribution and are placed in conservation and refrigeration chambers of all kinds. Intersam is composed of four main series: for high (IPIA), medium (IPIM), low (IPIB) and very low temperature (IPIT). Glycol industrial ceiling air coolers features The evaporator coils of these equipments are high performance and are built in 1/2 ”fluted copper tube and fin corrugated aluminum with spacings of 4.2, 6, 8 and 10mm. The frame, made of aluminum sheet, is provided with protection collars and has an type production system Venturi for the application of thermostatic expansion valves. Regarding its exterior structure, the manufacture is made of aluminum painted in polyester RAL-9018 color high resistance. Vibrations in these machines are avoided thanks to the fact that their entire structure is compact and highly rigid. The parts are all easily removable for maintenance.
