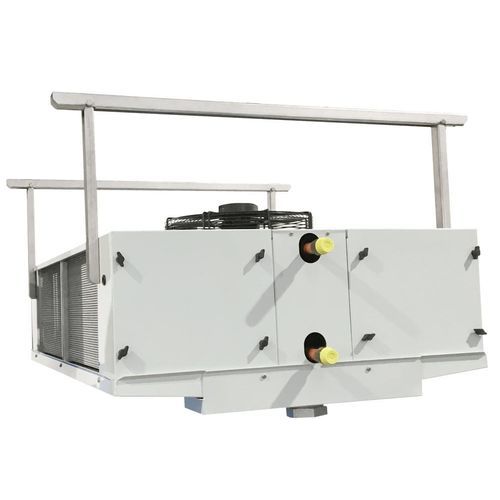

Air forced draft evaporator

distributionstorageresistance

Intersam industrial glycol cold ceiling chillers are dual air distribution and ideal for placement in storage and refrigeration chambers of all kinds. This range of Intersam is composed of four main series: for high (IPIA), medium (IPIM), low (IPIB) and very low temperature (IPIT). Glycol industrial cold roof chillers features The evaporator coils of these equipments are high performance and are built in 1/2 ”fluted copper tube and fin corrugated aluminum with spacings of 4.2, 6, 8 and 10mm. The frame, made of aluminum sheet, is provided with protection collars and has an type production system Venturi for the application of thermostatic expansion valves. Regarding its exterior structure, the manufacture is made of aluminum painted in polyester RAL-9018 color high resistance. Vibrations in these machines are avoided thanks to the fact that their entire structure is compact and highly rigid. The parts are all easily removable for maintenance. The units are fitted with helical fans with high performance protection grilles as standard and are provided with 400, 500, 630 and 800mm diameter motors. Three-phase for 400V / 50Hz, with IP-54 degree of protection, with external rotor and low consumption. The bearings are provided with a special grease for low temperatures, down to -50ºC. All motors are connected to a general watertight box, according to IP-55 regulations. Finally, defrosting is carried out with 230V electric heaters built in armored stainless steel tube. Its vulcanized ends avoid derivations and are introduced inside the battery and the tray. They are connected to a watertight junction box. The models in this range can be supplied with defrosting resistors.
