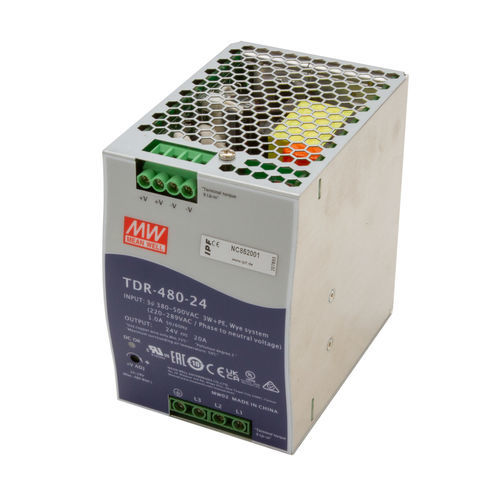

AC/DC power supply NC852001

regulatedstabilizedswitching

DC power supply, 3-phase, 125x128x86mm,, -30-70°C, Screw connection, IP20, Aluminum, Stabilized, Output voltage, pulsed Power supplies - Switching power supply units 400V AC Pulsed power supplies are used to supply electrical systems or system parts with a stabilized DC voltage. Due to the lower copper losses, pulsed power supplies in the lower power range are considerably more efficient than power transformers. Furthermore, they are more compact and are lighter weight than conventional, linear regulated power supplies, which contain a heavy transformer with iron core and cause additional losses in the linear regulator. Electrical features Type of electrical connection Screw connection Overload protection 100 … 130% der Leistungsaufnahme Residual ripple 1% Output voltage, pulsed yes Mechanical features Storage temperature -40 - 85°C Width 85,5mm Height 125,2mm Degree of protection (IP) IP20 Ambient temperature -30 - 70°C Weight 1.300g Length 128,5mm Housing material Aluminum Other features Air humidity(MIN) 20 - 95%
