Water hose SPIRALPRESS WT
PVCvinylsuction

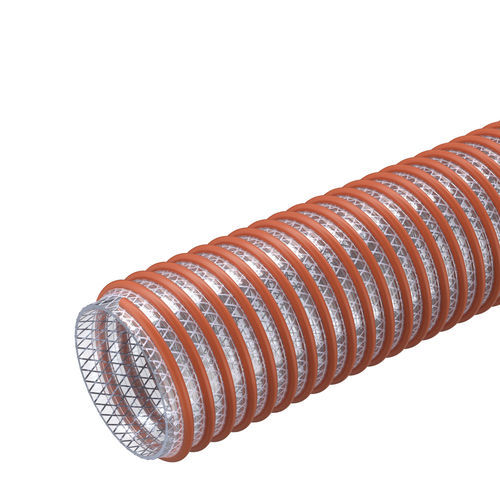

Water hose - SPIRALPRESS WT - IPL SPA - PVC / vinyl / suction
Water hose - SPIRALPRESS WT - IPL SPA - PVC / vinyl / suction
Water hose - SPIRALPRESS WT - IPL SPA - PVC / vinyl / suction - image - 2
Water hose - SPIRALPRESS WT - IPL SPA - PVC / vinyl / suction - image - 3
Add to favorites
Compare this product

Characteristics

Use
for water
Material
PVC, vinyl
Applications
suction, transport, high-pressure, discharge, food-grade
Other characteristics
flexible, lightweight, with smooth inner surface, translucent, crush-resistant, reinforced, transparent, corrugated, fabric-braided, PVC spiral
Inner diameter

Max.: 203.2 mm
(8 in)

Min.: 38.1 mm
(1.5 in)

Outer diameter

Max.: 236 mm
(9.291 in)

Min.: 51.5 mm
(2.028 in)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 4 bar
(58.015 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Delivered length

10 m, 20 m, 30 m
(32'09" , 65'07" , 98'05" )

Description

COLOR: Transparent with orange spiral. FEATURES Hose made by plasticized vinylic compound with an antishock rigid PVC spiral and textile reinforcement. Completely smooth inside and with an external PVC corrugated helix The clear wall is intended to easily detect the media transported as well as the exposed spiral allows less resistance to dragging. The textile braid reinforcement allows for a higher working pressure. Light and flexible, the hose is suitable for applications where a good resistance to high pressures is required. APPLICATION: Excellent solution for suction and delivery of water, conceived to resist at the highest pressures ,even in severe conditions. The larger sizes are ideally suited for fish handling (both wall and spiral are food grade), on the rental pumping systems and for water discharge.
