Flame-retardant hose VULCANO® 09 AF
for bulk materialsfor abrasive productsfor powders

Flame-retardant hose - VULCANO® 09 AF - IPL SPA - for bulk materials / for abrasive products / for powders
Flame-retardant hose - VULCANO® 09 AF - IPL SPA - for bulk materials / for abrasive products / for powders
Flame-retardant hose - VULCANO® 09 AF - IPL SPA - for bulk materials / for abrasive products / for powders - image - 2
Flame-retardant hose - VULCANO® 09 AF - IPL SPA - for bulk materials / for abrasive products / for powders - image - 3
Add to favorites
Compare this product

Characteristics

Use
for bulk materials, for abrasive products, for powders
Material
TPU
Applications
suction, for vacuum, heavy-duty, conveying, protection, for the wood industry, for the plastics industry, for industrial vacuum cleaners
Norms
DIN
Other characteristics
lightweight, flexible, abrasion-resistant, polyurethane-coated, self-extinguishing, weather-resistant, UV-resistant, anti-static, microbe-resistant, translucent, spiral wire, hydrolysis-resistant, flame-retardant, flameproof, reinforced
Inner diameter

Max.: 500 mm
(19.685 in)

Min.: 25 mm
(0.984 in)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

10 m, 15 m, 20 m
(32'09" , 49'02" , 65'07" )

Description

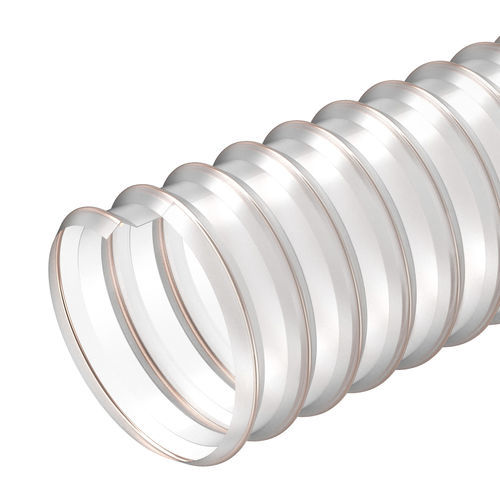

Features: Translucent ether based TPU hose reinforced with a TPU copper coated steel spiral. It is made by a special TPU that combines different properties which make the wall material permanent antistatic (R<109 Ohm/m); resistant to microbes and Hydrolysis, as well as to UV. The special TPU is flame retardant in accordance with UL 94-V0. The hose is as well flame retardant, according to the German Reg. DIN 4102-B1. Constant wall thickness of 0,9 mm for the whole diameter range. Light and flexible, it is suitable for applications where a good abrasion resistance is required, especially in the woodworking industry. The hose can be conductive (R<102 Ohm/m) by grounding the spiral. Application: suction of wood shavings and sawdust, in sawmills and woodworking plants. Used as protection sleeve
