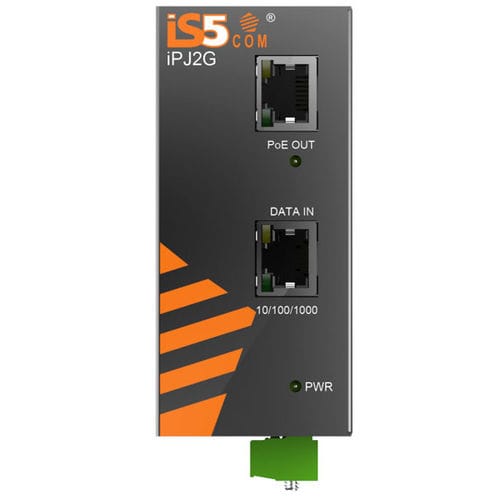

Power over Ethernet (PoE) module iPJ2G

iPJ2G Industrial 2-Port PoE Plus High Power Injector The iPJ2G PoE Injector is an advanced IEEE802.3 af /802.3 at compliant device with intelligent detection that provides 10/100/1000Base-T(X) PoE output. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the iPJ2G PoE Injector. iPJ2G can accept 12~57VDC power input and convert to 50VDC to meet the power input requirement of PoE standard. The iPJ2G PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE802.3 af /802.3at standards. Note: The equipment being powered must be fully compliant with IEEE802.3 af /802.3at for its power supply to be able to sense the PoE devices signature and apply power. The power is to be connected on Ethernet pins 1/2(V+) and 3/6(V-).
