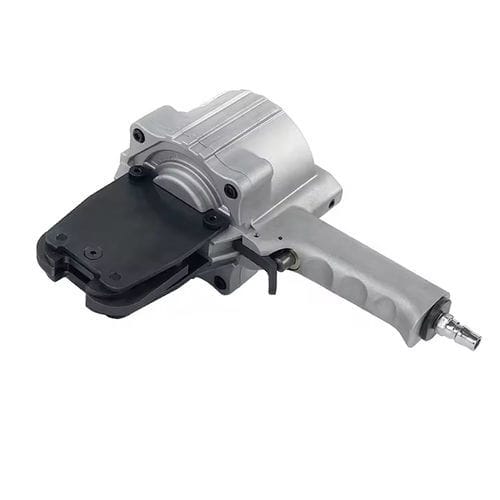

Pneumatic strapping tool EOS S 19-32

for metal strapswith seal

Product description
EOS S pneumatic strapping tool for 19, 25 and 32 mm metal straps with single-incision overlap seal. Designed for heavy-duty industrial use on flat and round packages; intended for use in combination with a tensioner (e.g. EOS T 19-32).

Key benefits

• Technical purchasing support
• Cost-effective solution for industrial strapping
• 12-month warranty on spare parts
• Fast delivery and quick deployment
• Manufacturer presence on the market for over 35 years

Product information
Power supply: Air – 6 bar
Air pressure range: 0.49 – 0.63 MPa
Maximum strap tension: 15,000 N
Closure type: Single-incision overlap seal (also referenced as double-engraved overlap seal)
Net weight: 3.1 kg
Dimensions (L x W x H): 300 x 210 x 130 mm
Compatible strap materials: Bright/blue metallic RMAX 850 N/mm2 and high-strength RMAX 1100 N/mm2
Compatible strap widths: 19, 25, 32 mm
Compatible strap thickness: 0.8 – 1.2 mm

Strapping specifications

• Strap type: Metallic (bright/blue RMAX 850 N/mm2; high strength RMAX 1100 N/mm2)
• Strap width: 19 / 25 / 32 mm
• Strap thickness: 0.8 – 1.2 mm
• Closure: Single-incision overlap seal

Technical specifications

• Pneumatic supply: 6 bar
• Operating air pressure: 0.49 – 0.63 MPa
• Maximum strap tension: 15,000 N
• Net weight: 3.1 kg
• Tool dimensions: 300 x 210 x 130 mm (L x W x H)
• Compatible strap widths: 19, 25, 32 mm
• Compatible strap thickness: 0.8 – 1.2 mm
• Closure type: Single-incision overlap seal (also appears as double-engraved overlap seal in some references)
