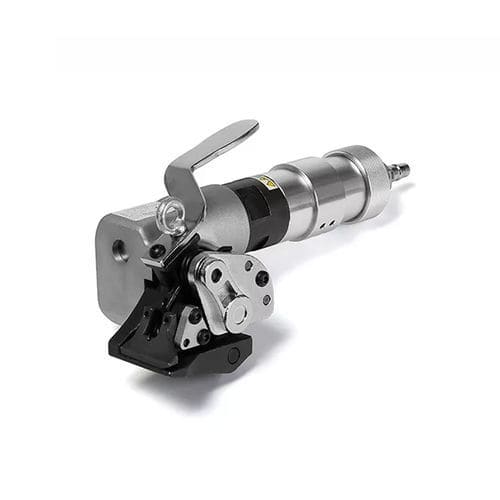

Strap tensioner EOS T 19-32

pneumaticfor heavy loadsfor metal bands

Short description
EOS T 19-32 pneumatic tensioner for metal strapping with seal. Designed for heavy-duty use on flat and round packages; quick roller opening and strap tensioning system. Use in conjunction with the EOS S 19-32 gripper.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchasing
• Excellent value for money
• 12-month warranty on spare parts
• Fast availability and service
• Manufacturer present on the market for over 35 years

General characteristics

• Pneumatic supply: 6 bar
• Air pressure: 0.49 – 0.63 MPa
• Tensioning speed: 85 mm/sec
• Strap tension: 8500 N
• Net weight: 4.1 kg
• Tool dimensions: L 410 x W 260 x H 390 mm

Specific strapping used

• Type of strapping: Bright/blue metallic RMAX 850 N/mm² and high-resistance RMAX 1100 N/mm²
• Strap width: 19 / 25 / 32 mm
• Strap thickness: 0.8 – 1.2 mm

Technical specifications

• Model: EOS T 19-32
• Product type: Pneumatic tensioner for metal strapping with seal
• Power supply: Air – 6 bar
• Air pressure: 0.49 – 0.63 MPa
• Tensioning speed: 85 mm/sec
• Max strap tension: 8500 N
• Strap width compatible: 19 / 25 / 32 mm
• Strap thickness compatible: 0.8 – 1.2 mm
• Dimensions (L x W x H): 410 x 260 x 390 mm
• Net weight: 4.1 kg
• Compatible gripper: EOS S 19-32
