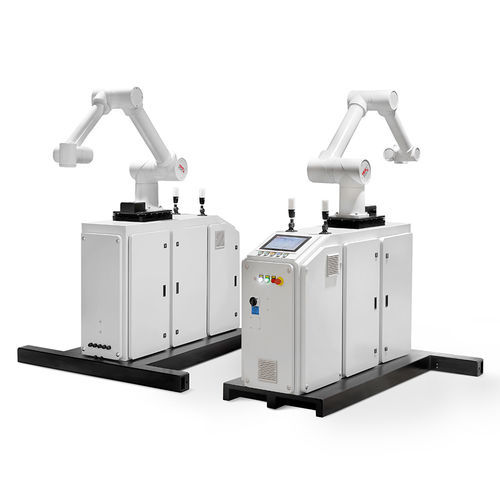

Cobot Easy Pal 635-1650F

6-axispalletizingstacking

Product overview
The Easy Pal 635-1650F is a collaborative palletizing cobot designed for end-of-line automation to streamline pallet stacking of boxes, bundles and packages. It works safely alongside operators, adapts to different production layouts and supports continuous operation. The unit integrates a 6-axis end effector, offers a lifting capacity up to 35 kg and an operating radius of 1650 mm with palletizing heights from 1600 to 1900 mm (including pallet). Compact footprint and quick commissioning enable fast ROI for small to large industrial sites.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support during purchasing
• Excellent value for money
• 12-month warranty on spare parts
• Fast delivery and quick setup
• Manufacturer experience: over 35 years on the market

Advantages / Key features

• Operational safety: designed for collaboration with operators to improve ergonomics and reduce end-of-line injuries.
• Production flexibility: intuitive programming and rapid reconfiguration for multiple palletizing patterns and formats.
• Small footprint: compact design for installation in confined spaces.
• Improved efficiency and quality: fewer manual errors, higher stacking accuracy and continuous operation.
• Easy integration: compatible with major production systems, low implementation cost and reduced startup times.

Product information
Model: Easy Pal 635-1650F
Power supply: 220V ±10%, 1P, 50/60Hz — Max power consumption: 2650W
Air pressure: 0.5–0.8 MPa
End effector: suction cups (optional sponge/suction-cup system)
Stackable box dimensions: L 260–500 mm; W 200–450 mm; H 150–400 mm (other sizes on request)
Max pallet size: 1000 x 1200 mm
Palletizing height: 1600–1900 mm including pallet (depends on box size and scheme)
Lifting stroke: 400 mm
Performance: up to 12 boxes/min (depending on box type/size)
Max working speed: 1.2 m/s
Operating radius / Max reach: 1650 mm
Axes: 6
Communication: EtherCAT, ModbusTCP, TCP/IP
Safety: emergency stop and reserved external safety I/O; optional safety grille, fence, LiDAR; IP54 robot arm, IP32 gripper
Packaged dimensions: L 1950 mm × W 1900 mm × H 2300 mm
Packaged weight: 1500 kg

Characteristics / technical specifications

• Model: Easy Pal 635-1650F
• Lifting capacity: up to 35 kg
• End effector: 6-axis gripper for high precision, stability and repeatability
• Palletizing height: 1600–1900 mm (including pallet)
• Operating radius / Maximum range of motion: 1650 mm
• Lifting stroke: 400 mm
• Stackable box size range: L 260–500 mm; W 200–450 mm; H 150–400 mm
• Maximum pallet size: 1000 × 1200 mm
• Maximum stack height: 1600–1900 mm (including pallet)
• Performance: up to 12 boxes/min (depends on box type and size)
• Max working speed: 1.2 m/s
• Power supply / consumption: 220V ±10%, 1P, 50/60Hz; max 2650W
• Air pressure requirement: 0.5–0.8 MPa
• End effector options: suction cups (optional sponge suction)
• Axes: 6
• Communication protocols: EtherCAT, ModbusTCP, TCP/IP
• Safety options: emergency stop, external safety I/O; optional grille/fence/LiDAR; IP54 arm, IP32 gripper
• Packaged dimensions: 1950 × 1900 × 2300 mm
• Packaged weight: 1500 kg
