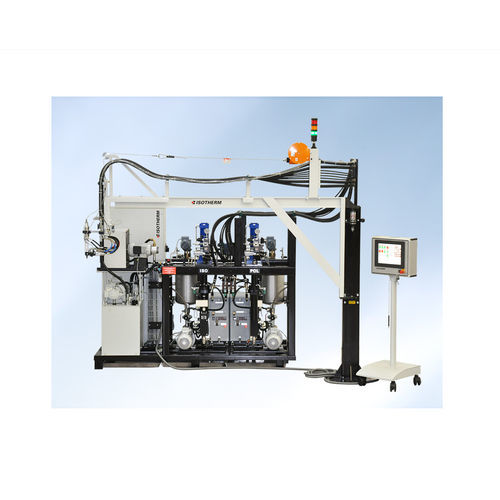

Programmable dispensing system PSM90

high-pressureautomatic

Polyurethane high pressure unit. Compact PUR high-pressure unit for the economic, ecologic production of technical parts in small shot sizes. Technical data Mixing ratio stepless, close loop regulated: 1:1 bis 4:1 / 1:4 Viscosity: max. 5000 mPa*s Arbeitsdruck max.: 200 bar Shot weight: 3 - 1000 g Dimension (LxWxH): 2500 x 1200 x 2200 mm Weight: 1540 kg Electric supply: 3 x 400 V / 50 Hz / 24 kVA Application Production of technical parts in open and closed moulds. Shot weights of 3 to 1000 g Pressure tanks 39 Liters stainless steel, doublejacket, oilheated, including electric stirrer, level- and temperature-senors, prepared for automatic tankfilling. Filters Edge-filters 0,1 mm, doublejacket, oilheated, including electric motor for cleaning. Dry-air flushing All Iso sealrings are continuously flushed with dry air (dewpoint -40°C). A typical ISOTHERM innovation to increase lifetime of seals. Metering Two oilheated vertical piston pumps with hydraulic drive and close loop regulation for mixing ratio and output, are responsable for the famous ISOTHERM metering precision. Mixing head Mechanically self-cleaning mixing heads with automatic recirculation of components, for smallest shot-size of 3 grams. Solvent-free, free of surge. For injection and spray. Control Industrial PC (Windows NT) with touch-screen shows clearly, safely and comfortably all relevant process parameters. Menu-aided parameter set and control, error-analysis. Process parameters sown on screen. PC for easy control adaptions to customers needs in case of machine integration and software changes.
