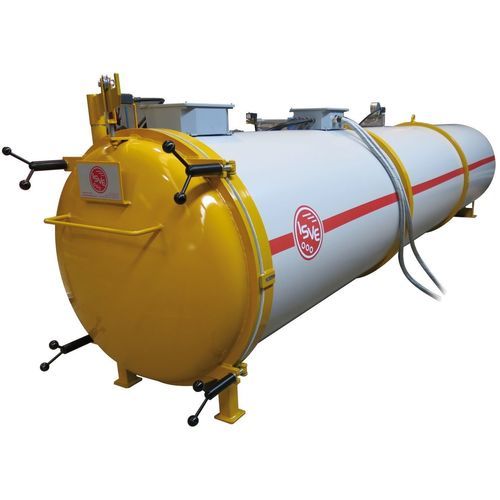

Vacuum dryer ES series

electriccontinuousfor wood

Overview
The ES Junior and ES 2 series are continuous vacuum dryers by ISVE designed for small workshops and craft producers. These autoclave systems perform low-temperature vacuum drying to remove moisture from wood while minimising thermal shocks, surface cracking and dimensional distortions. Evaporated moisture remains suspended in the chamber atmosphere, keeping the material surface humidified; a condenser precipitates the vapour and a programmed control maintains the required humidity gradient. Chamber conditioning is managed by probes on the heating, condensing and wood circuits. Periodic automatic drainage of condensate stabilises process conditions.

ISVE mini dryers - functions and advantages

• High drying speed: vacuum, low-temperature process enabling hourly humidity drops not achievable with many conventional methods.
• Perfect drying results: minimal deformations and cracks, no colour alterations, absence of internal tensions, preserved mechanical resistance.
• Capability to dry thick and highly wet semi-finished products.
• Suitable for all board types and wood species, with option for stainless autoclave for tannin-rich woods.
• Low operating costs: limited thermal losses and efficient use of thermal and electrical energy; minimal manual intervention.
• Low maintenance costs: simple, rational construction and corrosion-resistant materials.

Main features

• Autoclave: epoxy-painted steel (standard) or AISI 304 stainless steel (for corrosive/tannin-rich woods such as oak, chestnut).
• Insulating coating on autoclave.
• Sliding door opening for trolley loading.
• Electric control panel with microprocessor for automatic drying cycles and stop.
• Wireless humidity sensors for wood.
• Condenser to precipitate vapour and automatic condensate drainage.
• Electric aluminium heating plates and plate holder stand.
• Oil-lubricated vacuum pump.

Accessories on request

• Air-bag pressing system.
• Disinfestation system for xylophagous insects using insecticide tablets.

Start-up
The unit requires only an electrical supply and a condensate drain well for commissioning.

Technical table (dimensions and ratings)
TYPE | a mm | b mm | c mm | d mm | e mm | Weight kg | Cap. m3 | Inst. P kW | Abs. P kWh
ES Jun.4 | 1300 | 800 | 4800 | 9100 | 900 | 480 | 0.6 | 3.5 | 0.90
ES Jun.5 | 1300 | 800 | 6000 | 11200 | 900 | 550 | 0.7 | 3.5 | 0.95
ES 2 | 1300 | 1100 | 6100 | 11200 | 1150 | 900 | 2 | 8 | 1.8

Technical specifications

• Models: ES JUNIOR (ES Jun.4, ES Jun.5) and ES 2.
• Autoclave materials: epoxy-painted steel (standard) or AISI 304 stainless steel (optional for tannin-rich/corrosive woods).
• Insulation: insulating coating on autoclave.
• Door: sliding trolley opening.
• Control: electric control panel with microprocessor; programmed chamber conditioning via probes.
• Humidity control: wireless wood humidity sensors.
• Condensation management: condenser and automatic condensate drainage.
• Heating: electric aluminium plates; plate holder stand included.
• Vacuum: oil-lubricated vacuum pump.
• Optional accessories: air-bag pressing; insecticide-tablet disinfestation system.
• Power and capacity per model: see technical table above.
