Vacuum dryer ES series

electriccontinuousfor wood

Product overview

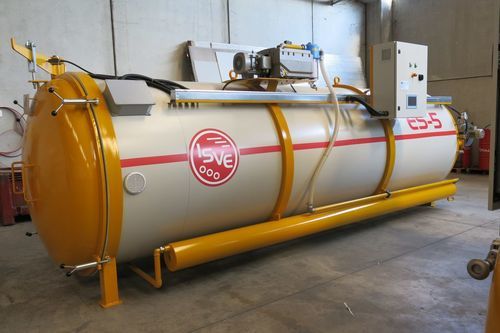

The ES series continuous vacuum dryers provide net capacities from 3 to 25 m3 for carpentries and timber merchants requiring industrial wood drying with automatic vacuum cycles and compact footprint.

Main features

• Autoclave: epoxy-coated steel for non-tannic species; optional AISI 304 stainless steel for corrosive woods (oak, chestnut, etc.).
• Thermal insulating covering.
• Carriage loading system for plates and wood with carriage opening.
• External carriage guides for reliable loading/unloading.
• Electric control panel with microprocessor for automatic running and stop cycles.
• Humidity control probes on a sample unit for process monitoring.
• Stainless steel condensate piping with two cooling fans.
• Hot-water circulation pump.
• Motorized four-way valve/pump for connection to an external hot-water source.
• Automatic condensate discharge.
• Aluminium electric heating plates.
• Plate holder stands.
• Oil-lubricated vacuum pump.

Accessories on request

• Air-bag pressing system.
• Disinfecting system against xylophagans using insecticide tablets.

Installation notes
To start the machine you only need an electrical socket and a condensate discharge pit.

Dimensions and technical table (columns: TYPE; a1 mm; a mm; b mm; c mm; d mm; e mm; f mm; Weight t; Net cap. m3; Inst. pow. kW; Absorbed pow. kWh)
TYPE; a1 mm; a mm; b mm; c mm; d mm; e mm; f mm; Weight t; Net cap. m3; Inst. pow. kW; Absorbed pow. kWh
ES 3; 795; 822; 2000; 2100; 1300; 5900; 5000; 1.7; 3; —; —
ES 5; 990; 1100; 2300; 2390; 1620; 5900; 5000; 4.1; 5; 2.1; 1.5
ES 8; 1200; 1220; 2300; 2650; 2100; 8000; 7000; 4.8; 8; 2.5; 2.0
ES 5+5; 2 dryers with one control unit (colspan); —; —; —; —; —; —; 9.5; 10; 2.2; 2.1
ES 12; 1400; 1280; 2400; 2750; 2300; 8000; 7000; —; 12; 3.2; 2.8
ES 20; 1600; 1280; 2500; 2850; 2500; 12000; 11000; —; 20; 3.2; 3.0
ES 25; 2400; 2400; 3700; 4000; 3600; 9000; 7000; —; 25; 5.4; 4.0

Technical specifications

• Series: ES continuous vacuum dryer.
• Available net capacities: 3, 5, 8, 10 (ES 5+5), 12, 20, 25 m3.
• Autoclave construction: epoxy-coated steel (standard) or AISI 304 stainless steel (option for corrosive woods).
• Thermal insulation to reduce heat loss.
• Loading system: carriage for plates and wood with external guides.
• Controls: microprocessor-based electric panel and sample-unit humidity probes for automated drying cycles and automatic stop.
• Condensation system: stainless steel piping with two cooling fans and automatic condensate discharge.
• Heating and circulation: aluminium electric heating plates and hot-water circulation pump; motorized four-way valve/pump for external hot-water source connection.
• Vacuum system: oil-lubricated vacuum pump.
• Accessories: air-bag pressing and insecticide tablet disinfection system available on request.
• Power and consumption values vary by model; see table for indicative values.
