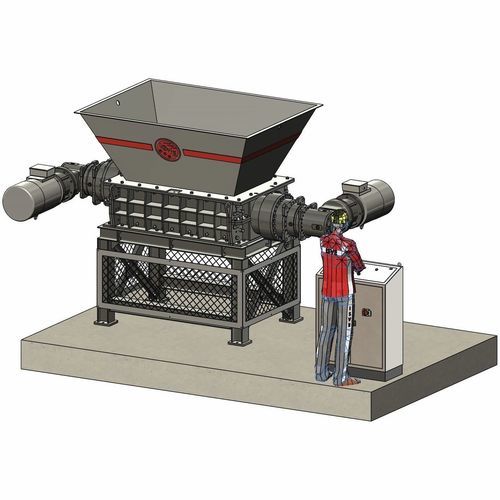

Double shaft shredder B-120/70S

papertireplastic

Main features:

• Cutting chamber: 1200 x 750 mm
• Installed power: 45 kW + 45 kW (2 x 45 kW)
• Drive type: gear transmission via oil-bath reduction gears
• Number of cutting shafts: 2
• Number of knives/cutters: 24
• Cutter thickness: 50 mm
• Number of spacing combs: 24
• Average cutter speed: 11 revs/min
• Safety: emergency stop, automatic reversal in case of overload
• Standards: manufactured to EC/CE standards

Accessories on request:

• Interchangeable hopper
• Loading and unloading conveyor belts
• Custom-made supporting base / skid

Explanatory notes:Very versatile machine suitable for shredding a wide range of waste and non-waste materials. It can be integrated into a production line for continuous operation. Recommended for shredding wood offcuts, rags, plastic blocks, leather, paper, cardboard, packaging, polyethylene strapping, plastic film, tyres, etc.

Characteristics of the shredder:

• Thick welded sheet-steel support structure
• Bearing housings with sealing system against dust and liquids
• Heavy-duty shafts with 24 special wear-resistant steel cutters and 24 spacers to facilitate discharge
• Scaled arrangement of cutter teeth for improved grip and cutting progression
• 2 planetary/epicyclic gearboxes with rotation axes parallel to the cutter shafts
• 2 x 45 kW 4-pole motors, PREMIUM efficiency class (IE3)
• Oil-bath transmission system with steel gears and pinions
• Welded sheet-metal hopper for frontal or top loading
• Tubular steel base equipped with a drawer connectable to suction systems or belt conveyors; protection nets and frontal gate with safety micro-switch

Characteristics of control system:

• Electrical switchboard complying with CEE/EEC standards, fitted with a torque limiter that reverses rotor direction on overload
• Main internal PLC LOGO SIEMENS for control of peripheral plant units
• Emergency control functions for system stop
• Execution in compliance with CE standards

Additional features / options:

• IE3 PREMIUM motors
• SIEMENS control
• Touch panel
• ISVE maintenance program
• ISVE server connect
• Internal camera (camera inside)

Technical characteristics / specifications:

• Model: B-120/70S
• Cutting chamber: 1200 x 750 mm
• Installed power: 45 kW + 45 kW (total 90 kW)
• Drive: gears via oil-bath reduction gears
• Cutting shafts: 2
• Number of cutters: 24
• Cutter thickness: 50 mm
• Spacing combs: 24
• Average cutter speed: 11 revs/min
• Gearboxes: 2 planetary/epicyclic reduction gearboxes (axes parallel to cutter shafts)
• Motors: 2 x 45 kW, 4-pole, PREMIUM efficiency class (IE3)
• Safety: emergency stop, automatic reversal on overload, safety micro-switch on frontal gate
• Standards: EC/CE
