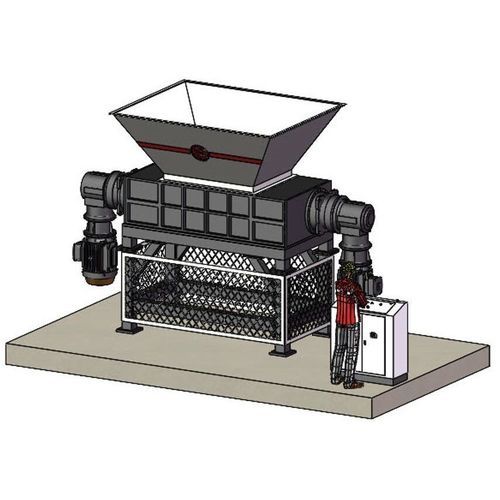

Double shaft shredder B-140/100Spapertireplastic
Add to favorites
Compare this product
Characteristics
- Number of shafts
- double shaft
- Application
- for wood, paper, for waste, for cardboard, tire, plastic
- Other characteristics
- rugged, energy-efficient, heavy-duty, with conveyor
- Power
55,000 W
- Rotational speed
Min.: 10 rpm
(63 rad.min-1)Max.: 15 rpm
(94 rad.min-1)- Machine length
2,100 mm
(83 in)- Machine width
1,322 mm
(52 in)- Machine height
3,100 mm
(122 in)
Description
Main features:
Accessories on request:
Explanatory notes:
Characteristics of the shredder:
Characteristics of control system:
Technical specifications:
- Cutting chamber: 1400 x 1000 mm
- Installed power: 55 kW + 55 kW
- Drive: oil-bath reduction gears; oil-bath transmission with steel gears and pinions
- Number of cutting shafts: 2
- Number of cutters: 28 anti-wear steel cutters, 50 mm thickness
- Number of spacing combs: 28
- Average cutter speed: 10-15 revs./min.
- Safety: emergency stop, torque limiter with reversal in case of overload
- Manufactured to EC/CE standards
Accessories on request:
- Interchangeable hopper
- Loading and unloading conveyor belts
- Custom-made supporting base
Explanatory notes:
- Multipurpose industrial shredder suitable for processing a wide range of waste and bulk materials. Designed for integration into continuous production lines.
- Recommended materials: wood pieces, rags, plastic blocks, leather, paper, cardboard, packaging, polyethylene strapping, plastic film, tyres (depending on configuration), etc.
Characteristics of the shredder:
- Thick welded sheet steel frame
- Bearing supports with sealing against dust and liquids
- High-thickness shafts with 28 special anti-wear steel cutters and 28 spacers to facilitate discharge
- Scaled arrangement of cutter teeth for improved gripping and cutting progression
- 2 epicyclic gearboxes with rotation axes parallel to the cutter axis
- 2 x 55 kW 4-pole motors, PREMIUM efficiency class (IE3)
- Oil-bath transmission with steel gears and pinions
- Welded sheet metal hopper for frontal or top loading (interchangeable on request)
- Steel tubular base with drawer for suction connection or protection nets and frontal gate with safety micro-switch
Characteristics of control system:
- Electric switchboard complying with CEE/CE standards, equipped with torque limiter that reverses rotor motion in case of overload
- LOGO SIEMENS PLC for control of plant peripherals
- Emergency functions to stop the plant in case of accidental introduction of ferrous material
- Execution according to CE standards
Technical specifications:
- Model: B-140/100S
- Cutting chamber: 1400 x 1000 mm
- Installed power: 55 kW + 55 kW (two motors)
- Drive type: oil-bath reduction gears; oil-bath transmission with steel gears and pinions
- Cutting shafts: 2
- Cutters: 28 anti-wear steel cutters, 50 mm thickness
- Spacing combs: 28
- Average cutter speed: 10-15 revs./min.
- Gearboxes: 2 epicyclic gearboxes (axes parallel to cutter axis)
- Motors: 2 x 55 kW (4-pole) IE3 class
- Hopper: welded sheet metal for frontal or top loading (interchangeable on request)
- Optional accessories: loading/unloading conveyors, custom supporting base
- Control: electric switchboard with torque limiter, LOGO SIEMENS PLC, emergency functions
- Safety: emergency stop, reversal on overload, CE compliance
- Base: steel tubular base with drawer for suction connection or protection nets
