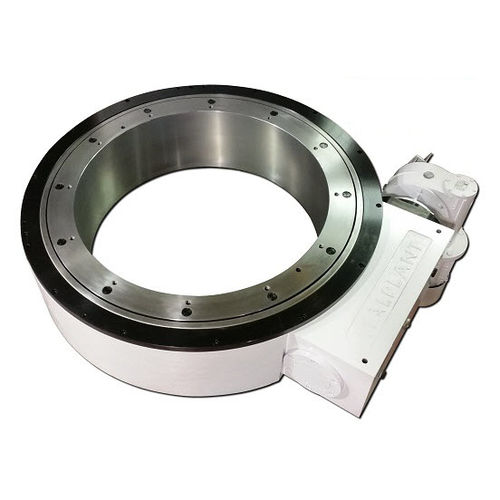

Rotary indexer TIG series

crown typegloboidal camfor heavy loads

The Italplant toroidal indexers TIG are globoidal cam mechanisms with similar functioning to the other rotary table of our production. The difference with these is that turn a ring instead of the dial plate. From this fact born the toroidal shape of the rotary table, particularly useful in case you need a lot of space in the central area. This space allows, in addition to the passage of cables, the placing of assembly stations, pick and place and any equipment that would otherwise be located outside, taking away valuable space. The result is a compact indexer, with performance and load capacity superior to its competitors, due to the roller follower by Italplant design, which enhance the mechanical properties. Features: - The only Toroidal Indexer with the Safety Output Torque Limiter (SOTL - Patented) - High speed for continuous motion running - Enormous inner hole - Compact design - Optimum accuracy - Mechanism with globoidal cam - Low number of stops avaiable
