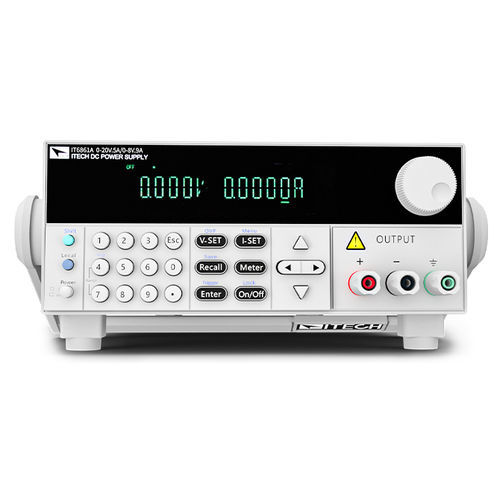

DC/DC power supply IT6800A/B

current outputdual-outputadjustable

IT6860A series (72~180W) programming DC power supply offers dual-range voltage switch for your choice, which can replace two ordinary ones, greatly saving your cost and operation space. At the same time, IT6860A supports panel List programming and software operation via computer to meet more communication demands. IT6860A series is suited for laboratory testing, online production test, maintenance testing, etc. ♦ Convenient data entry via knob or numerical key pad IT6860A series DC power supply offers high and low voltage range for your choice. When needing high voltage output, high voltage is optional, when needing high current, low voltage is optional. With this function, the power supply can be operated continuously with the change of load from cv mode to cc mode. For the current load, the power supply operates in constant voltage mode and the power supply will provide a controlled output voltage. With the decrease of load resistance value , the output voltage drop remains constant until the current increases up to preset current Value, and then the conversion occurs. At this time the power supply becomes constant current output, and the output voltage will be reduced in proportion according to the further reduce of load resistance value. When the current value is lower than the set value, the power supply returns to the constant voltage mode. This series supports output timer function, in ON mode, the indicator light “Timer” will be lit on the VFD screen. When output of power supply is opened, timer will begin to work, after reaching the definite time, output will be off automatically. Timing output time range is 0.1s~9999.9s or 0.1m~9999.9m.
