Pressure blast cabinet PP-SS series
automaticdoublewith turntable

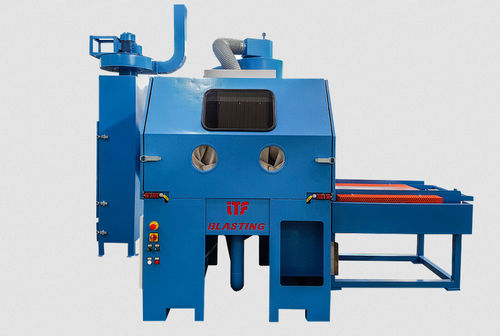

Pressure blast cabinet - PP-SS series - ITF - automatic / double / with turntable
Pressure blast cabinet - PP-SS series - ITF - automatic / double / with turntable
Pressure blast cabinet - PP-SS series - ITF - automatic / double / with turntable - image - 2
Add to favorites
Compare this product

Characteristics

Technology
pressure
Operational mode
automatic
Other characteristics
with turntable, double
Applications
for aerospace applications, for 3D printing, for flat glass engraving
Width

1,300 mm, 1,600 mm, 2,000 mm
(51.2 in, 63 in, 78.7 in)

Depth

1,100 mm, 1,300 mm, 2,000 mm
(43 in, 51 in, 79 in)

Height

700 mm, 850 mm, 1,000 mm
(27.6 in, 33.5 in, 39.4 in)

Description

PP-SS model is designed for automatic solutions. This machine is suitable for automatic operations thanks to several additional accessories that can be installed. The parts can be handled by rotating tables, double rollers conveyor, automatic trolleys or indexed satellites while the nozzles can be moved by linear axis gantry (from one up to three axes) or by robot. The machine is equipped with a single pressure vessel (80, 150 or 300 lt of volume according the process specifications) for short time processes or with double pressure vessel in order to guarantee every time a continuous blasting process.

Catalogs

No catalogs are available for this product.

See all of ITF‘s catalogs
