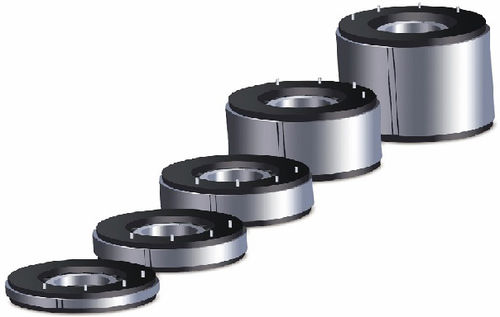

Synchronous torque motor TM78 Seriesthree-phasehollow-shaftslotless
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Configuration
- hollow-shaft, slotless, compact, small
- Number of poles
- 12-pole
- Applications
- for machine tools, for rotary tables
- Other characteristics
- low-voltage, high-torque, with speed controller
- Intensity
4.9 A, 6.3 A, 8.3 A, 10.5 A, 11 A
- Torque
0.68 Nm, 1.66 Nm, 2.63 Nm, 5.29 Nm, 8.82 Nm
(0.501542 ft.lb, 1.224353 ft.lb, 1.939788 ft.lb, 3.901704 ft.lb, 6.505298 ft.lb)- Rotational speed
220 rpm, 484 rpm, 1,296 rpm, 1,962 rpm, 2,200 rpm
(1,382.3008 rad.min-1, 3,041.0617 rad.min-1, 8,143.0082 rad.min-1, 12,327.6096 rad.min-1, 13,823.0077 rad.min-1)
Description
Unleash unparalleled torque and control with our Torque Motors.
Our Torque Motors provide unparalleled torque and control, enabling precise rotation and positioning in high-torque applications such as rotary tables and machine tooling.
• Smallest motors in our torque family
• Compact design with large hollow shaft
• Low voltage supported
• High dynamics and accuracy
• Optimal speed control
• TMSL-X is the slot-less torque motor with improved torque specs
