Synchronous torque motor TMXSL105 Series
three-phase380 V320 V

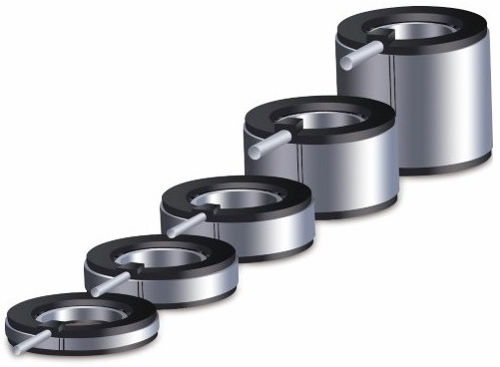

Synchronous torque motor - TMXSL105 Series - ITG Linear Motor - three-phase / 380 V / 320 V
Synchronous torque motor - TMXSL105 Series - ITG Linear Motor - three-phase / 380 V / 320 V
Add to favorites
Compare this product
Go to the ITG Linear Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
380 V, 320 V
Configuration
slotless
Number of poles
20-pole
Applications
for machine tools, for rotary tables
Other characteristics
high-torque, precision, with speed controller
Intensity

4.6 A, 5.4 A, 8.5 A, 10 A, 14.7 A

Torque

0.32 Nm, 0.8 Nm, 1.35 Nm, 3 Nm, 5 Nm
(0.23602 ft.lb, 0.59005 ft.lb, 0.995709 ft.lb, 2.212686 ft.lb, 3.687811 ft.lb)

Rotational speed

3,000 rpm, 10,000 rpm, 20,000 rpm, 30,000 rpm, 50,000 rpm
(18,849.5559 rad.min-1, 62,831.8531 rad.min-1, 125,663.7061 rad.min-1, 188,495.5592 rad.min-1, 314,159.2654 rad.min-1)

Description

Unleash unparalleled torque and control with our Torque Motors. Our Torque Motors provide unparalleled torque and control, enabling precise rotation and positioning in high-torque applications such as rotary tables and machine tooling. • Medium motor in ourtorque motor family • Multiple winding types are available with optimized back EMF • Various applications can be used • High dynamics and accuracy • Optimal speed control • TMSL-X is the slot-less torque motor with improved torque specs
