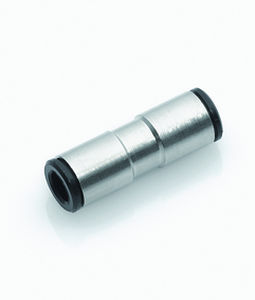

Compressed air fitting ipso 03
push-inISODIN

compressed air fitting
compressed air fitting
compressed air fitting
Add to favorites
Compare this product


Characteristics

Applications
for compressed air
Attachment
push-in
Norms
ISO, DIN
Material
silicone-free, nickel-plated brass, stainless steel
Other characteristics
with O-ring, flexible, modular
Diameter

Min.: 3 mm
(0.118 in)

Max.: 14 mm
(0.551 in)

Operating pressure

16 bar
(232.06 psi)

Description

– Push-in system with stainless steel elastic clamp – Tube assembly with one movement – For tubes in various materials (PU, PA) – Small-scale and low weight – O-ring in sealing channel — for rough surfaces – Modular, flexible structure – Hexagon socket for easy assembly Operating temperature -20°C bis +70°C -20°C bis +80°C For fittings with PVC seal For fittings with NBR O-rings Vacuum max 98% Materials NBR seals Black thrust ring CW614N and CW617N plastic Thread Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, DIN ISO 261 Cylindrical with O-ring seal Tubes For tubes in line with ISO 14743 Tolerances for external Ø 4 to 8: ±0.1 Tolerances for external Ø 10 to 14: ±0.15 (PU) 10 to 14: ±0.1 (PA) Recommended materials, PU, PA

Catalogs

ITV Pneumatik
ITV Pneumatik
265 Pages

Other ITV products

ipso – Push-in fittings
