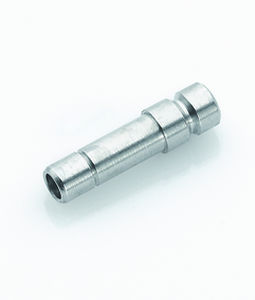

Round plug ipso 09
non-threadedstainless steelfor tubes

round plug
round plug
round plug
Add to favorites
Compare this product


Characteristics

Form
round
Type
non-threaded
Material
stainless steel
Product applications
for tubes, flexible, O-ring, for fittings
Other characteristics
push-in
Diameter

Min.: 4 mm
(0.16 in)

Max.: 14 mm
(0.55 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

– Push-in system with stainless steel elastic clamp – Tube assembly with one movement – For tubes in various materials (PU, PA) – Small-scale and low weight – O-ring in sealing channel — for rough surfaces – Modular, flexible structure – Hexagon socket for easy assembly For fittings with PVC seal For fittings with NBR O-rings Vacuum : max 98% Materials : NBR seals Black thrust ringCW614N and CW617N plastic Thread : Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, DIN ISO 261Cylindrical with O-ring seal Tubes: For tubes in line with ISO 14743 Tolerances for external Ø 4 to 8: ±0.1 Tolerances for external Ø 10 to 14: ±0.15 (PU) 10 to 14: ±0.1 (PA) Recommended materials, PU, PA
