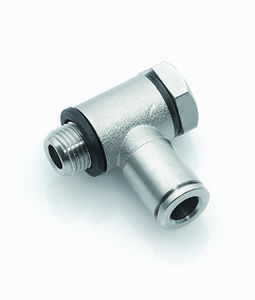

Pneumatic fitting ipso 017push-inbanjoT
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- push-in, banjo
- Configuration
- T
- Norms
- ISO, DIN
- Material
- nickel-plated brass, stainless steel, silicone-free
- Other characteristics
- with O-ring, swivel, flexible, modular
- Diameter
Max.: 12 mm
(0.472 in)Min.: 3 mm
(0.118 in)- Operating pressure
16 bar
(232.06 psi)
Description
– Push-in system with elastic clamp made of stainless steel
– Thrustring made of brass, nickel-plated, for many applications
– Tube assembly with one movement
– For tubes in various materials
– Small-scale and low weight
– O-ring in sealing channel – for rough surfaces
– Modular, flexible structure
– Hexagon socket for easy assembly
Operating temperature -
-20°C to +70°C For fittings with PVC seal
-20ºC to +80°C For fittings with NBR O-rings
Vacuum - max 98%
Materials
NBR seals
CW614N and CW617N
Silicon-free
AISI 316L
CW614N
Thread
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, DIN ISO 261
Cylindrical with O-ring seal
Tubes
For tubes in line with ISO 14743
Tolerances for external Ø
4 to 8: ±0.1
Tolerances for external Ø
10 to 14: ±0.15 (PU)
10 to 14: ±0.1 (PA)
Recommended materials, PU, PA
