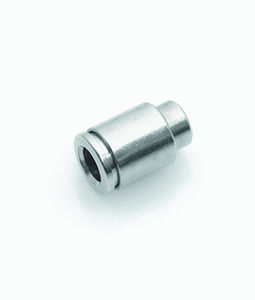

Round plug ipso 044non-threadedstainless steelnickel-plated brass
Add to favorites
Compare this product
Characteristics
- Form
- round
- Type
- non-threaded
- Material
- nickel-plated brass, stainless steel
- Product applications
- flexible, O-ring, socket
- Other characteristics
- with seal
- Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
– Push-in system with elastic clamp made of stainless steel
– Thrustring made of brass, nickel-plated, for many applications
– Tube assembly with one movement
– For tubes in various materials
– Small-scale and low weight
– O-ring in sealing channel – for rough surfaces
– Modular, flexible structure
– Hexagon socket for easy assembly
Operating temperature -
-20°C to +70°C For fittings with PVC seal
-20ºC to +80°C For fittings with NBR O-rings
Vacuum - max 98%
Materials
NBR seals
CW614N and CW617N
Silicon-free
AISI 316L
CW614N
Thread
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, DIN ISO 261
Cylindrical with O-ring seal
Tubes
For tubes in line with ISO 14743
Tolerances for external Ø
4 to 8: ±0.1
Tolerances for external Ø
10 to 14: ±0.15 (PU)
10 to 14: ±0.1 (PA)
Recommended materials, PU, PA
