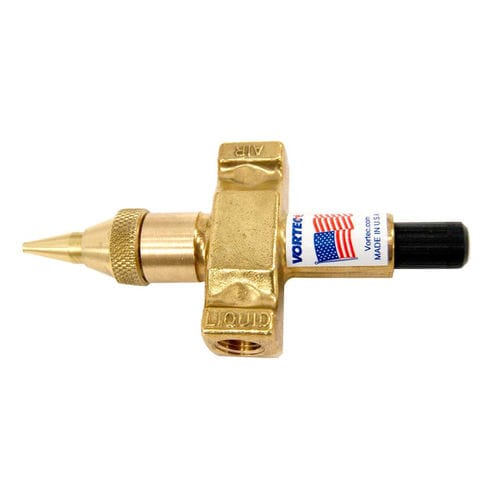

Spray atomizing nozzle 1713
coolingfor liquidscompressed air

spray atomizing nozzle
spray atomizing nozzle
spray atomizing nozzle
spray atomizing nozzle
Add to favorites
Compare this product


Characteristics

Function
spray, cooling
Fluid
for liquids, compressed air
Stream
straight jet
Material
brass
Applications
for the steel industry, for cooling systems, industrial
Other characteristics
very fine atomization, hydraulic
Orifice diameter

Max.: 200 µm

Min.: 60 µm

Description

Vortec Spray Nozzles provide ultra-fine droplet-sized sprays for evaporative cooling, atomization, humidification and wetting. Superior to conventional hydraulic and piezoelectric nozzles, spray nozzles produce spray patterns that can be widely diffused or directed. The liquid stream is entrained by high velocity compressed air to create a range of micron-level spray droplets, resulting in greater surface coverage than conventional nozzles. With this more efficient use of the liquid, spray nozzles accelerate air-liquid interaction to give more effective cooling, humidifying, wetting and dust control. Three types of spray nozzles are available, all producing adjustable flow rates from 6 to 30 gallons (23 – 114 liters) per hour. Fogging: Directed spray having droplet sizes of 20 – 60 microns. Liquid viscosities up to 1100 cP. Atomizing: Directed spray having droplet sizes of 60 – 200 microns. Liquid viscosities up to 1100 cP Humidifying: Wide spray with droplet sizes of 20 – 200 microns. Liquid viscosities up to 100 cP. BENEFITS More efficient use of liquid as it is entrained by the compressed air Consistent, effective cooling of surfaces reduces heat distortion of parts Eliminates damage to wood and other water sensitive surfaces due to low humidity Provides even coverage when applying coatings, rust inhibitors, lubricants, preservatives, etc. to parts, wood, rubber, plastic, food, and more Reduces noise levels Speeds testing for humidity effects due to varying humidity levels High pressure liquid flows are not required Precision flow rates minimize usage of expensive coatings, preservatives, rust inhibitors, etc. Produce finer drops than will hydraulic nozzles
