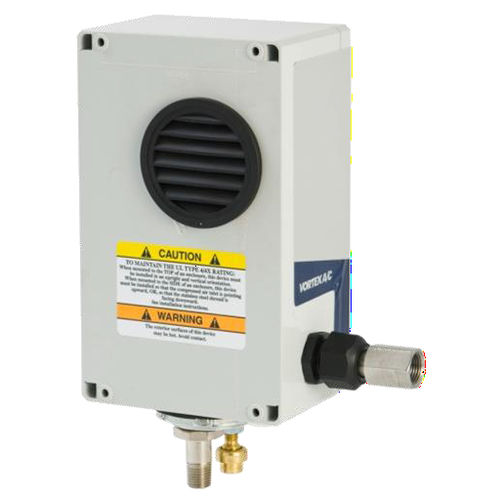

Compressed air cooler AC-7615
industrialfor the food industryfor the automotive industry

compressed air cooler
compressed air cooler
compressed air cooler
compressed air cooler
compressed air cooler
Add to favorites
Compare this product


Characteristics

Material
compressed air
Applications
industrial, for the food industry, for the automotive industry, computer room, for enclosure air conditioning, for the plastics industry, for the food and beverage industry, for the pharmaceutical industry, for electrical cabinets, for the cement industry, for electronics, for mining applications, for refrigeration
Other characteristics
compact, low-maintenance, NEMA, small, vortex tube, air-cooled
Power

264 W
(900.8 BTU/h)

Maximum temperature

Min.: 24 °C
(75 °F)

Max.: 38 °C
(100 °F)

Flow rate

Min.: 90 ft³/min
(2.549 m³/min)

Max.: 100 ft³/min
(2.832 m³/min)

Pressure

Min.: 6.2 bar
(89.923 psi)

Max.: 6.89 bar
(99.931 psi)

Description

Vortex A/C Coolers incorporate the most up-to-date features into Vortec’s line of highly reliable, cost effective enclosure coolers. - Sleek, modern design - Noise reduction of 78%, when compared to other vortex enclosure coolers - Energy use reduction through its integral mechanical thermostat - Quick and easy installation in about 5 minutes - Flexible installation: top, side or front (door) mount The Vortex A/C is available in 4 different cooling capacities, and ratings of NEMA 12, NEMA 4/4X and Hazardous Location Duty (Class 1, Div 2). All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns. Vortex Enclosure Coolers maintain a slight pressurization in the cabinet to keep electrical and electronic components clean and dry; and most are thermostatically controlled to maintain enclosure temperatures within a specified temperature range. Benefits - Thermostatically controlled to maintain enclosure temperatures within ideal range - Highly reliable, with full 10 year warranty - No ambient, dirty or humid air enters the cabinet
