I/O expansion module 021620-B
CANopenindustrial

I/O expansion module
I/O expansion module
I/O expansion module
I/O expansion module
I/O expansion module
I/O expansion module
I/O expansion module
I/O expansion module
I/O expansion module
Add to favorites
Compare this product


Characteristics

Options
I/O, CANopen
Other characteristics
industrial

Description

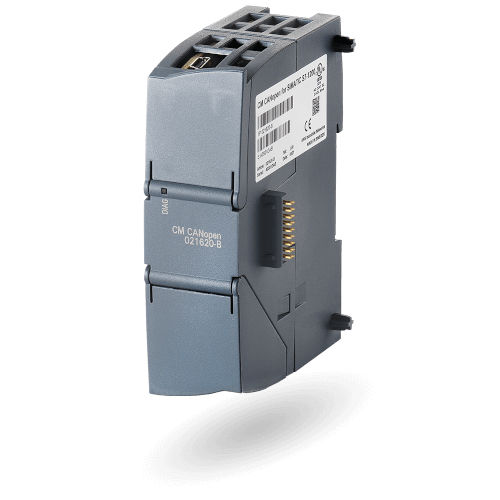

The CM CANopen enables system integrators to connect any CANopen or CAN 2.0A device to the SIMATIC S7-1200 PLC. The module plugs into the communication module interface of the S7-1200 and acts as a bridge between the CANopen or CAN devices and the SIMATIC basic controller, allowing integrators to choose from a wider range of automation products when designing their system. Highlights Plug-in CANopen master/slave module for SIMATIC S7-1200 basic controller Connects up to 16 CANopen slave devices per module in master mode 256 byte input and 256 byte output per module Up to 3 CM CANopen modules can be connected to one S7-1200 LEDs provide diagnostic information on module, network and I/O status Fully integrated into the hardware catalog of the TIA Portal configuration environment CANopen configuration via the included CM CANopen Configuration Studio software Support for transparent CAN 2.0A for custom protocol implementation Pre-made function blocks available for easy PLC programming in TIA portal Complies to the specifications CiA 301 version 4.2 and CiA 302 version 4.1 published by CAN in Automation 3 year product guarantee

Catalogs

No catalogs are available for this product.

See all of IXXAT Automation‘s catalogs
