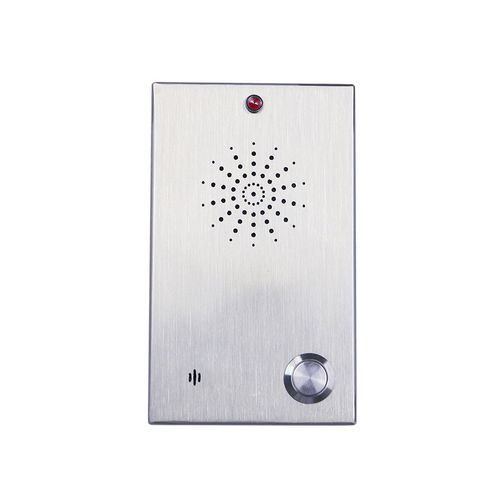

Analog telephone JR505-SC

IP66IP65IP54

This Elevator Emergency Telephone is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism. MAIN FEATURES of Handsfree Elevator Telephone – Standard Analogue phone – Robust housing, constructed of stainless steel – Mini size, easy installation – Vandal resistant metal button – Hands free operation – Programmable for speed-dialing (PPT) – Can set a service number to receive service calls – Non-volatile memory – On wall mounting, simple installation – Weather protection IP54-IP65 – 4 X Tamper proof screws for mounting – Fast-fit terminal connection – Telephone line powered – CE, FCC, RoHS, ISO9001 compliant Power Supply - From the analogue telephone network Supply Voltage - 24 VDC to 65 VDC Supply Current - 20 mA DC to 100 mA DC Ringer Volume - – 80dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) Dialing Method - DTMF mode in accordance with ITU-T recommendation Q.23. Ambient conditions Protection type - IP 66 as per EN60529 Operating temperature - –25°C to +65°C Storage temperature - -35°C to +75°C
