Centrifugal pressure booster 52560 series

waterlubricatedsingle-stage

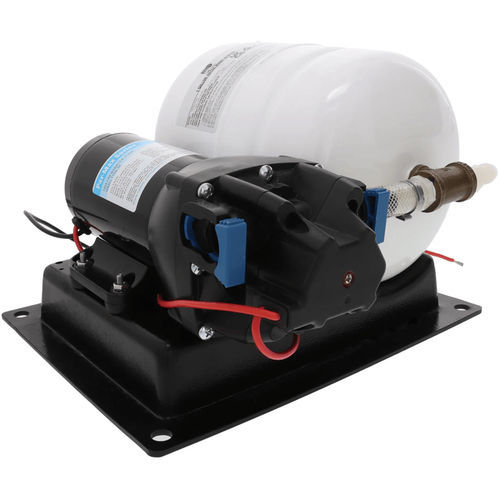

Product Features Full systems either stacked or mounted for rapid, easy installation Run dry ability Smooth even flow Thermal overload protection ISO 8846 MARINE (Ignition Protection) Xylem’s Jabsco Marine Water Pressure Booster Systems are fully assembled water pressure systems for your onboard freshwater setup. Systems are available either stacked or mounted to a panel and include all the necessary components to meet your setup needs. Stacked Systems Each Jabsco marine stacked system includes single or double water pressure pumps, in-line strainers, and an accumulator tank, pre-mounted on a metal bracket for quick and easy installation. Our stacked systems are assembled using Xylem’s Jabsco Par-Max HD pumps. Par-Max HD pumps are tailored for freshwater delivery applications and feature robust, wide diameter motor and cast aluminum lower housing for exceptional life, even at high pressures. Panel Systems Jabsco panel systems are fully assembled with pump, pressure switch, accumulator tank, and strainer and are mounted on one board for rapid and easy installation. Panel systems are ideal for up to four outlets. Model Numbers 52520-1000 12V Single Stack System 52530-1000 12V Double Stack System 52530-1100 24V Double Stack System 52560-0010 12V Panel System 52560-0020 24V Panel System
