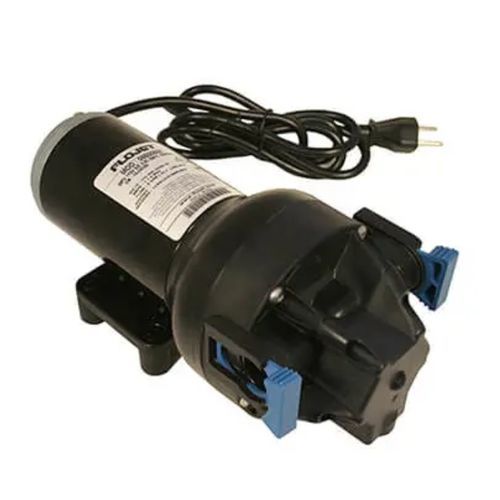

Diaphragm pump Flojet VersiJet series
waterelectricself-priming

Diaphragm pump - Flojet VersiJet series - Jabsco - water / electric / self-priming
Diaphragm pump - Flojet VersiJet series - Jabsco - water / electric / self-priming
Diaphragm pump - Flojet VersiJet series - Jabsco - water / electric / self-priming - image - 2
Diaphragm pump - Flojet VersiJet series - Jabsco - water / electric / self-priming - image - 3
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
water
Operation
electric
Priming
self-priming
Mobility
mobile
Domain
industrial
Material
cast aluminum
Flow

13.2 m³/h, 15.1 m³/h, 17 m³/h, 18.9 m³/h, 22.7 m³/h
(3.48707 ft³/h, 3.989 ft³/h, 4.49092 ft³/h, 5.99671 ft³/h, 667.4472 ft³/h)

Pressure

1.4 bar, 2.4 bar, 3.1 bar, 4.1 bar, 4.8 bar
(20.305 psi, 34.809 psi, 44.962 psi, 59.465 psi, 69.618 psi)

Length

219 mm, 255 mm, 269 mm
(9 in, 10 in, 11 in)

Width

97 mm, 120 mm
(3.82 in, 4.72 in)

Height

109 mm, 129 mm
(4.29 in, 5.08 in)

Weight

2.3 kg, 2.9 kg, 3.5 kg
(5.07 lb, 6.39 lb, 7.72 lb)

Description

Product Features Co-molded four and five chamber diaphragm design with cast aluminum lower housing for durability even at high pressures Heavy duty motor for long life Sealed motor and pressure switch for IPX6 ingress protection Flow rates up to 6 GPM (22.7 LPM) and pressures up to 70 psi (4.8 bar) Various elastomers for compatibility with a broad range of fluids including harsh and abrasive chemicals Versatile installation due to self-priming capability Able to run dry without damage Quick-connect ports for easy installation and servicing Accommodating flow rates up to 6 GPM (22.7 LPM) and pressure up to 70 PSI (4.8 bar), the Flojet VersiJet Series is equipped to tackle a variety of industrial applications, including agricultural, construction, and disinfection and sanitization, that require spraying, fluid transfer, cooling, filtration, dispensing, and pressure boosting. Backed by the industry-leading experience of Xylem’s Flojet brand and its diaphragm pump technology, the Flojet VersiJet Series is the product to trust if you need a robust and long-lasting pumping solution.
