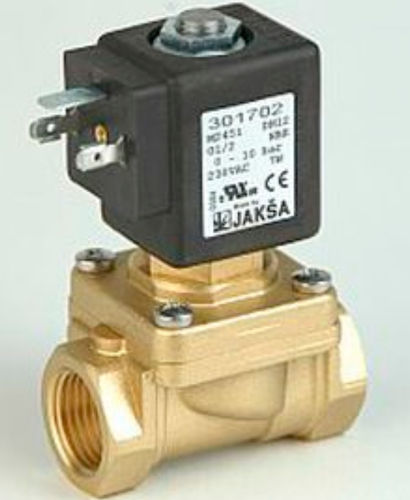

Low-pressure solenoid valve M2451 pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC, NO
- Medium
- for water, air, for steam
- Body
- IP65, brass
- Process connection
- G 1/2
- Other characteristics
- low-pressure
- DN
0.5 in
- Voltage
Max.: 230 V
Min.: 24 V
- Temperature
Max.: 130 °C
(266 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)
Description
The 2/2 Solenoid Valves for low pressure has internal parts made of stainless steel and seals made of NBR, EPDM and FPM.
It can also reach a fluid temperature of a minimum of -10°C and a maximum of +85°C for NBR, +100°C for FPM and +130°C for EPDM. It has also an ambient temperature of up to +55°C and a viscosity of up to 21 mm2/s.
Ambient temperature: +55°C max
Viscosity: 21 mm2/s max.
Response time: opening 0.1 - 1 s; closing 0.5 - 5 s
Duty cycle: continuous (ED100%)
Cycling rate: 10 - 100 cycles/min
