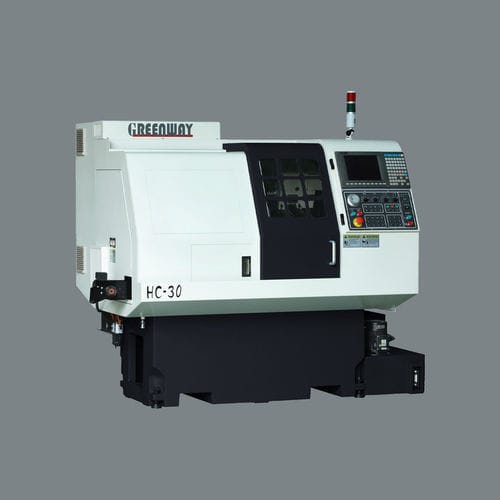

CNC turning center HC-30A2-58 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle mount
- A2-5
- Number of tool stations
- 8 tools
- Diameter
300 mm
(11.81 in)- Spindle speed
Min.: 50 rpm
(314.159 rad.min-1)Max.: 6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
150 mm
(6 in)- Maximum cutting diameter
180 mm
(7 in)- Bar capacity
30 mm
(1 in)- Axe X
350 mm
(14 in)- Axe Z
250 mm
(10 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
3.8 kW, 5.5 kW
(5.2 hp, 7.5 hp)- Coolant capacity
120 l
(32 gal)
Description
Optional C-axis for arbitrary angle spindle positioning and contour control
Optional Y-axis live tooling device; End side live tooling device.
Bore of spindle
mm
Ø33
O.D. turning tool size
mm - 口20
I.D. turning tool size
mm
Ø20
Powerful coolant pump
HP
1
Collet chuck
-- - 163E
X、Z-axis servo motor
KW
1
Approx. machine net weight
KGS - 2450×1550×1950
