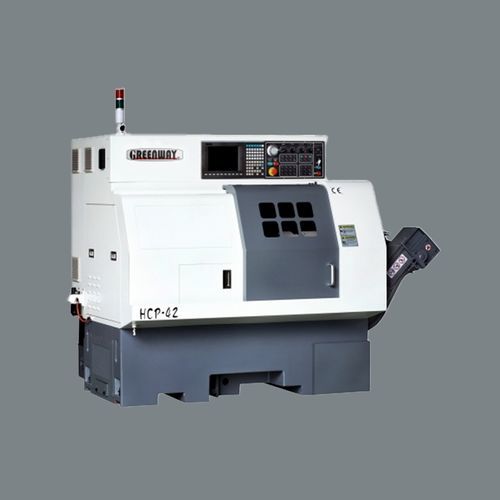

CNC turning center HCP-42
A2-58 toolspowerful

CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful
CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful
CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful - image - 2
CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful - image - 3
CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful - image - 4
CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful - image - 5
CNC turning center - HCP-42 - Jarng Yeong Enterprise Co., Ltd. - A2-5 / 8 tools / powerful - image - 6
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle mount
A2-5
Number of tool stations
8 tools
Performance
powerful
Other characteristics
Y-axis
Diameter

300 mm
(11.81 in)

Spindle speed

Min.: 50 rpm
(314.159 rad.min-1)

Max.: 6,000 rpm
(37,699.112 rad.min-1)

Maximum part length

150 mm
(6 in)

Maximum cutting diameter

250 mm
(10 in)

Bar capacity

42 mm
(2 in)

Axe X

350 mm
(14 in)

Axe Z

250 mm
(10 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

3.8 kW, 5.5 kW
(5.2 hp, 7.5 hp)

Coolant capacity

110 l
(29 gal)

Overall lenght

2,450 mm
(96 in)

Overall width

1,600 mm
(63 in)

Overall height

2,100 mm
(83 in)

Weight

2,300 kg
(5,071 lb)

Description

Optional C-axis to available for arbitrary angle spindle positioning and contour control. Optional Y-axis live tooling device; End side live tooling device. Hydraulic chuck inch 6" Bore of spindle mm - Ø45 O.D. turning tool size mm - 口20 I.D. turning tool size mm Ø20 Powerful coolant pump HP 1 Collet chuck -- - 173E/C44 X、Z-axis servo motor KW 1
